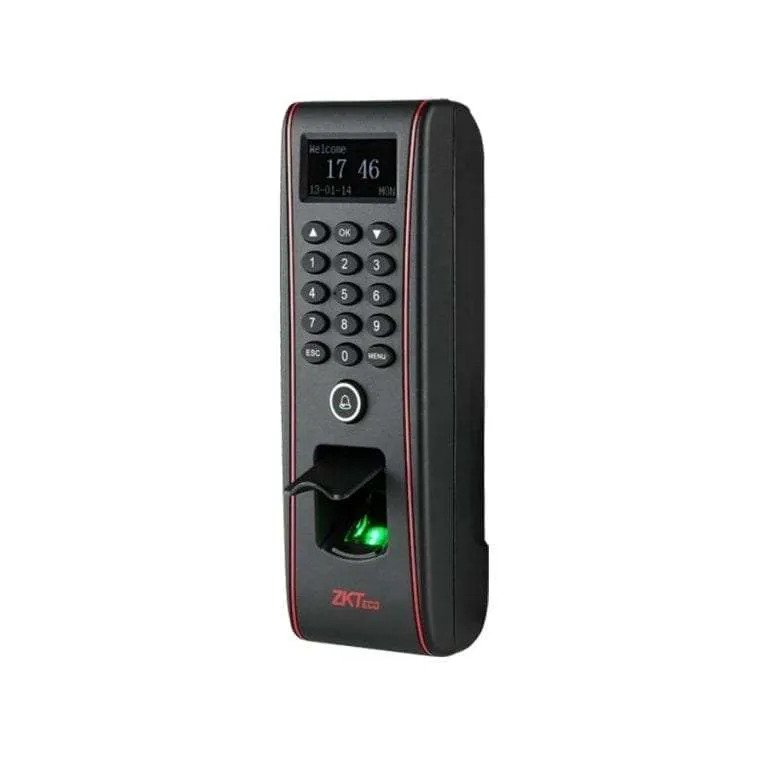

ZK Access TF1700 Outdoor Standalone Biometric & Card Reader
The ZK Access TF1700 Outdoor Standalone Biometric & Card Reader is a Reliable, durable, and highly accurate ZK fingerprint sensor with ver. 10 algorithm provides less than 1.5-second user recognition. Works without a computer. Complete setup and programming can be done via keypads and embedded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints. Relay Outputs for electric lock and alarm. Inputs for door status sensor and exit switch. Supports multiple time zones and personnel groups for programming valid entry zones. IP65-rated waterproof enclosure permits this reader to be used for outdoor applications.
- Sleek and slim design for narrow spaces.
- Fast and accurate fingerprint algorithm
- Fingerprint identification in 1 second
- Stores 3000 fingerprint templates, 10,000 cards, and 50000 transactions
- Easy installation and connectivity with Wiegand input and output and network interface by TCP/IP and RS485
- Full access control features include DLST, Web-server, Anti-Passback, and access control interface for third-party electric lock, door sensor, exit button, and alarm
- Easy operation and management; works without computer and has a built-in keypad and RF card reader for multi-modal authentication
- Special Order with Mifare card module
Specification
Capacity
| FINGERPRINT | 3000 templates |
|---|---|
| CARDS | 10,000 templates |
| TRANSACTIONS | 50,000 logs |
Wiegand Signal
| SIGNAL | Input |
|---|---|
| SIGNAL | Output |
Power
| POWER SUPPLY | 12V DC, 3A |
|---|
Display
| B&W | LED screen |
|---|
Dimensions
| HEIGHT | 5.8” (185 mm) |
|---|---|
| WIDTH | 2.5” (63.5 mm) |
| DEPTH | 1.3” (42 mm) |
Optional Function
| ID | fingerprint with ID card reader |
|---|---|
| MIFARE | fingerprint with Mifare card reader |
Communication
| COMMUNICATION | RS485 |
|---|---|
| COMMUNICATION | TCP/IP |
Wiegand Signal
| SIGNAL | Input |
|---|---|
| SIGNAL | Output |
Environment
| OPERATING TEMPERATURE | 32-113 F (0-45 C) |
|---|---|
| OPERATING HUMIDITY | 20% to 80% |
Packaging
| DIMENSIONS | 10 3/4” x 8” x 4” |
|---|---|
| WEIGHT | 3 lbs (48 ozs.) |
