Underground Cable Wire Locator -NOYAFA – NF-816-C

Name: Underground Cable Wire Locator -NOYAFA - NF-816-C
SKU: 14813
Availability: InStock

Ksh 4,000.00 (Ksh 4,640.00 incl.VAT)

Order via whatsapp (Faster)

Category: Tools & Accessories Tags: Cable Testers, LAN Tester, Network Cable Testers

Description

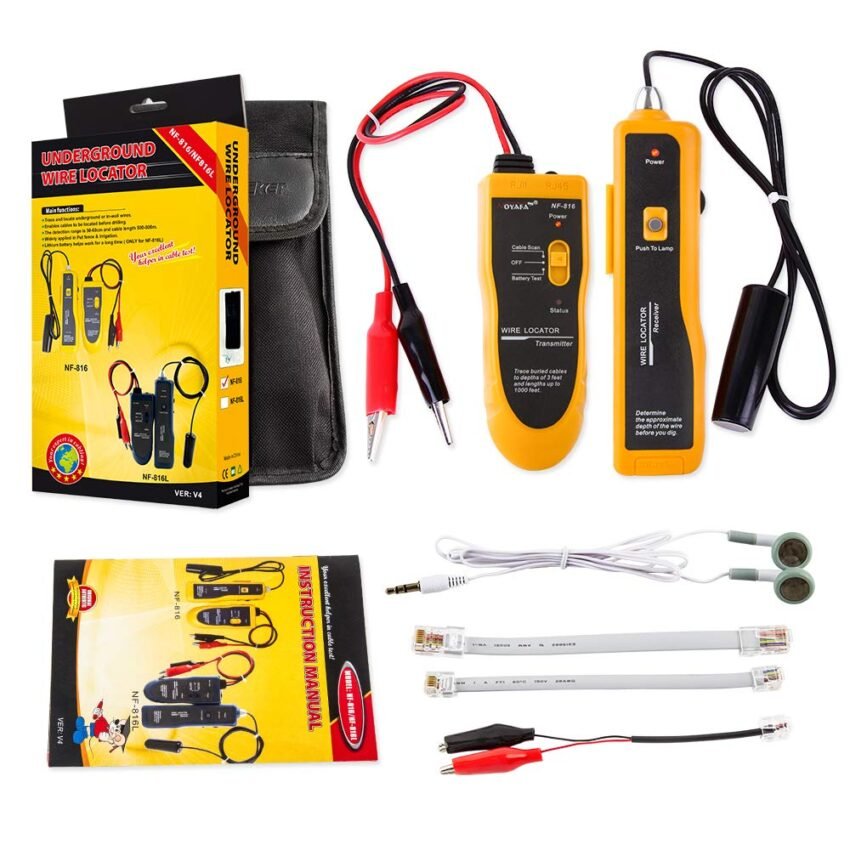

Underground Cable Wire Locator

Underground cable locator in

This Network underground wire locator device is mainly designed to allow users to track cables in the underground or in-side wall. At no time should this device be used on utility mains powered devices or cabling connected to the utility mains. If no Doubt does not use this device and call in a suitably qualified electrical contractor.

Helpful locating & tracking buried and hidden wires and other hidden wires. Only for wires & cables, not for sprinkler or irrigation valves
Easily locate pet fence wires, metals wires, metals pipes, electrical wires, etc.
Locate-Determining Which Receptacles are on specific Drill Sites before drilling
Wire tracer range-up to 2 feet deep and 1000 feet in length. Power: 9V Alkaline battery.
WARNING: Do not use live circuits to avoid damaging the Tester! This device is ONLY to locate non-energized Cable
WARNING: Only for single-core or double-core wire, NOT FOR multi-core wire and bundled wires.
9V batteries are NOT included.

NF-816 Transmitter specification;

Tone frequency: 200kHz The Max length distance: 1000 feet The Max depth distance: 2 feet The Max. working current: Less than 70mA Max. signal voltage: 15Vp-p Signal display: Tone Max. signal voltage: 15Vp-p Battery type: DC9. 0Vx 1pc Dimensions (LxWxD): 49 x 135 x 33mm NF-816 Receiver specification Frequency: 200kHz The Max. working current: Less than 70mA Earphone jack: 1 Battery type: DC9. 0Vx 1pc Dimensions (LxWxD): 43 x 168 x 27mm
