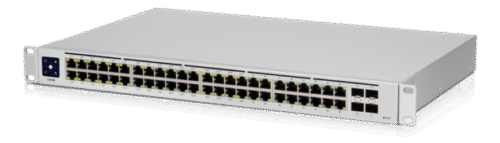

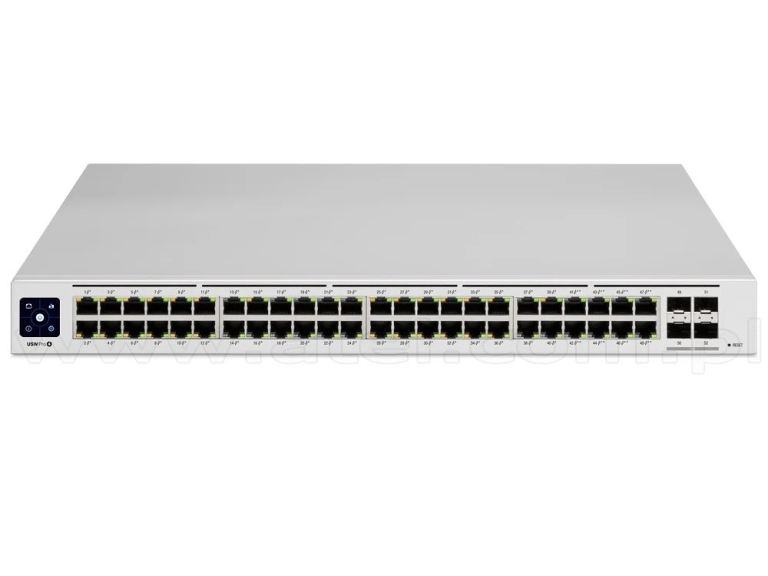

Ubiquiti USW-48-PoE Switch (32) GbE, PoE+ RJ45 ports, (16) GbE RJ45 ports, (4) 1G SFP ports, 195W

Ubiquiti USW-48-PoE is a high-performance 48-port Gigabit Layer 2 switch designed to meet the demands of modern enterprise networks.

With 32 auto-sensing 802.3at PoE+ ports and 4 SFP ports, this switch provides flexible connectivity options for both wired and fiber connections, ensuring robust performance for your networking needs.

Specifications

• Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″)
• Weight: 4.52 kg (9.97 lb) without mounting brackets; 4.61 kg (10.16 lb) with mounting brackets
• Total Non-blocking Throughput: 52 Gbps
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• Power Method: 100—240V AC, 50/60 Hz
• Max Power Consumption: 45W (excluding PoE output)
• Total Available PoE: 195W
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 90% non-condensing

Key Features

• 48 Gigabit Ethernet Ports: Includes 32 PoE+ RJ45 ports for powering devices like IP cameras and access points, along with 16 additional GbE RJ45 ports.
• 4 SFP Ports: Offers Gigabit fiber uplink options to expand your network seamlessly.
• 1.3″ Touch LCM Display: Easily manage and configure the switch status using the intuitive touch interface.
• Managed by UniFi Controller: Fully configurable through the UniFi Network Controller and mobile app, allowing for remote management and monitoring.
• PoE Support: Each PoE port provides up to 32W of power, accommodating various PoE devices.
• Extensive Layer 2 Switching Protocols: Supports operation modes such as switching, mirroring, or aggregation per port for optimal network management.
• Enhanced Protection: ESD/EMP protection rated at ± 16kV (air) and ± 12kV (contact).

Common FAQs

• What is the maximum power output per port? Each PoE+ port can deliver up to 32W, making it suitable for powering a wide range of devices.
• Can the USW-48-PoE be managed remotely? Yes, it can be managed via the UniFi Network Controller and mobile app, enabling easy configuration from anywhere.
• What type of devices can I connect using the PoE ports? The PoE ports are perfect for connecting devices like IP cameras, VoIP phones, and wireless access points.
• What is the power supply for the switch? The switch operates on 100—240V AC, with an internal power supply rated at 240W.
• Is the USW-48-PoE suitable for outdoor use? This switch is designed for indoor use; consider appropriate environmental conditions for placement.

Package Contents

• Ubiquiti USW-48-PoE Switch
• Mounting brackets
• Power cord
• Quick Start Guide
