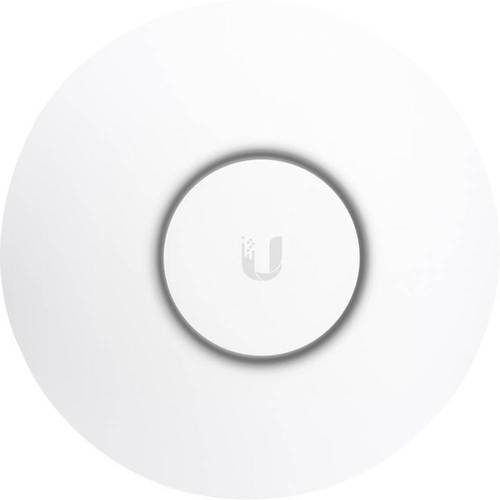

Ubiquiti Unifi AC HD UAP-AC-HD
Ubiquiti UniFi AC HD (UAP-AC-HD) is a cutting-edge 4×4 802.11ac Wave 2 access point designed specifically for high-density networks and critical system applications.
Powered by a dual-core ARM processor and equipped with 512 MB of RAM, this access point provides robust performance and can cover up to 1,500 ft², supporting 500+ connected devices.
The UAP-AC-HD is powered using PoE+, and a PoE power adapter is included with single unit purchases, making installation straightforward.
Engineered to take full advantage of 802.11AC Wave 2, the UAP-AC-HD delivers unparalleled multi-user support, ensuring that your network can handle heavy traffic without compromising speed or reliability.
Specifications
- Dimensions: 220 x 220 x 48.1 mm
- Weight:
- 700 g (24.7 oz)
- 830 g (29.3 oz) with mounting kits
- Networking Interface: (2) 10/100/1000 Ethernet Ports
- Ports: (2) Ethernet RJ45, (1) USB Type C
- Buttons: Reset
- Antennas:
- (2) 2.4G internal single-band antennas (dual polarity)
- (2) 5G internal single-band antennas (dual polarity)
- Wi-Fi Standards: 802.11a/b/g/n/ac/ac-wave2
- Power Method: PoE 802.3at
- Power Supply: PoE Injector 48VDC -0.5A Gigabit
- Maximum Power Consumption: 17W
- Max TX Power: 25 dBm
- BSSID: 4 Per Radio
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Certifications: CE, FCC, IC
- Mounting: Wall/Ceiling (kits included)
- Operating Temperature: -10 to 70° C (14 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
Key Features
- Advanced Traffic Management: Supports VLAN 802.1Q, Advanced QoS with per-user rate limiting, and guest traffic isolation to optimize your network performance.
- Robust Management Capabilities: Manage your networks from a single control plane with intuitive configuration, control, and monitoring features.
- Remote Firmware Upgrade: Keep your network secure and efficient with the ability to upgrade firmware remotely.
- Guest Portal/Hotspot Support: Easily manage guest access to your network, ensuring security while providing convenience.
Common FAQs
- What are the advantages of 802.11ac Wave 2? 802.11ac Wave 2 provides higher data rates, improved performance in high-density environments, and enhanced multi-user capabilities, making it ideal for busy offices and venues.
- Can the UAP-AC-HD be mounted outdoors? The UAP-AC-HD is designed for indoor use. For outdoor environments, consider using Ubiquiti’s outdoor access points.
- How is the UAP-AC-HD powered? The UAP-AC-HD supports PoE+, allowing it to receive power and data through a single Ethernet cable for simplified installation.
- How many devices can the UAP-AC-HD support? This access point can support over 500 concurrent clients, making it suitable for high-demand environments.
- Is setup straightforward for the UAP-AC-HD? Yes! The UAP-AC-HD can be easily integrated into your network using the UniFi controller software, allowing for efficient configuration and monitoring.
