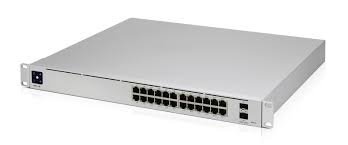

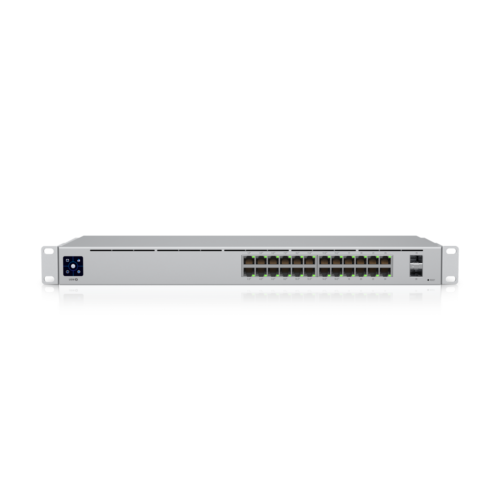

Ubiquiti UniFi 24-Port Switch (USW-24-PoE)

Ubiquiti UniFi 24-Port Switch (USW-24-PoE) is a fully managed Gigabit Ethernet switch designed for small to medium-sized businesses, providing a reliable networking solution with extensive features.

This switch includes 24 Gigabit Ethernet ports, with 16 of them supporting 802.3at PoE+, delivering up to 30W per port to power your PoE-enabled devices such as wireless access points, IP cameras, and VoIP phones.

Specifications

• PoE Availability: Total PoE budget of 95W, suitable for powering multiple PoE devices.
• Power Consumption: Maximum power consumption (excluding PoE output) is 25W.
• Operating Conditions:
  • Temperature range: -5°C to 40°C (23°F to 104°F)
  • Humidity range: 5% to 95% non-condensing
• Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69″)
• Weight: 3.7 kg (8.16 lb)

Key Features

• Comprehensive Port Configuration:
  • (16) GbE PoE+ RJ45 Ports: Ideal for powering devices while providing data connectivity.
  • (8) GbE RJ45 Ports: Non-PoE ports for additional wired connections.
  • (2) 1G SFP Ports: High-speed uplink options for network expansion and connectivity to fiber networks.
• Advanced Management Capabilities:
  • Managed via the UniFi Network application, allowing for intuitive configuration and centralized control of your network.
  • Layer 2 and Layer 3 features including VLAN, QoS, and link aggregation for enhanced network management.
• User-Friendly Interface:
  • A 1.3″ LCM color touchscreen provides easy access to system status and configuration options.
  • Monitor and manage network users and guests with personalized options for guest hotspots.
• Durable Design:
  • The switch features a robust metal housing for enhanced durability and better heat dissipation.
  • Fanless design ensures silent operation, making it suitable for office environments.

Common FAQS

• What is the maximum power output per port for PoE devices?

  Each PoE+ port can deliver up to 30W of power, supporting a wide range of PoE-enabled devices

• Can I use this switch without PoE?

  Yes, you can use the USW-24-PoE as a regular Gigabit switch without connecting PoE devices. The non-PoE ports will function normally

• How do I manage the switch?

  The switch can be managed through the UniFi Network application, allowing you to configure settings, monitor network performance, and update firmware remotely

• Is this switch suitable for outdoor use?

  No, the USW-24-PoE is designed for indoor use. For outdoor applications, consider Ubiquiti’s outdoor-rated switches

• What kind of devices can I connect to this switch?

  You can connect a variety of devices, including IP cameras, wireless access points, VoIP phones, and standard Ethernet devices

• Does the switch support VLANs?

  Yes, the USW-24-PoE supports VLAN configuration, allowing you to segment your network for better management and security
