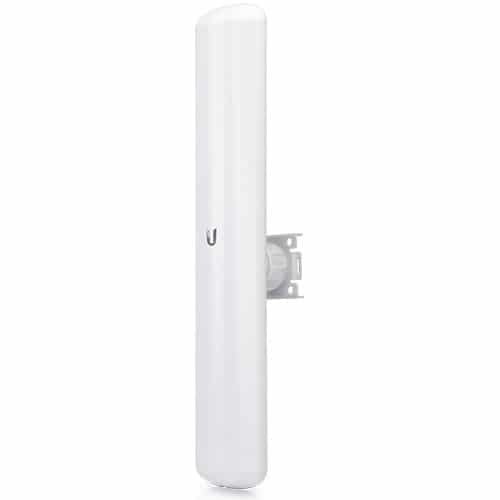

Ubiquiti LBE-5AC-16-120 5GHz Lite Beam AC 11ac Access Point 16dBi 120° PoE

Ubiquiti LBE-5AC-16-120 LiteBeam AC Sector delivers excellent performance for outdoor wireless deployments in the 5GHz frequency band. Built on Ubiquiti’s robust airMAX ac technology, it provides high throughput, reduced latency, and excellent scalability for PtMP connections. Designed to reach distances over 30 km and maintain speeds of 100+ Mbps, the LiteBeam AC is perfect for rural connectivity, surveillance backhauls, and business broadband distribution.

With its 16 dBi antenna gain and 120° sector coverage, this unit is built to serve multiple clients simultaneously. The included 24V Passive PoE Adapter ensures easy power and data delivery over a single Ethernet cable, making deployment simple and cost-efficient.

Key Features

• Wide Coverage: 120° beamwidth for effective area-wide client coverage
• High Gain: 16 dBi integrated directional antenna for extended reach
• airMAX AC Technology: Delivers 100+ Mbps throughput using 802.11ac protocol
• TDMA Protocol: Reduces latency and increases network scalability
• Long Distance: Reliable performance at distances of over 30 km
• QoS Optimization: Intelligent QoS prioritizes voice and video traffic
• Robust Outdoor Design: Withstands harsh weather with a temperature range of -40 to 70°C
• Energy Efficient: Low 7W power draw, powered via 24V passive PoE
• Quick Installation: Pole mounting kit included with fast setup mechanism

Technical Specifications

• Processor: MIPS 74K
• Memory: 64MB
• Network Interface: 1 x 10/100 Ethernet Port
• Frequency Range (Global): 5150 – 5875 MHz
• Frequency Range (USA): 5725 – 5850 MHz
• Antenna Gain: 16 dBi
• Maximum Output Power: 25 dBm
• Maximum Power Consumption: 7W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5% to 95% non-condensing
• Wind Survivability: 200 km/h (125 mph)
• Mounting: Pole mount with quick-install brackets

Common FAQs

1. What is the maximum distance the LiteBeam AC can cover?
   The LiteBeam AC supports high-speed connections over 18+ miles (30+ km) in clear line-of-sight environments.
2. Is this access point suitable for outdoor use?
   Yes, it is specifically engineered for outdoor installations, with extreme temperature tolerance and wind survivability of up to 200 km/h.
3. Does it support Quality of Service (QoS)?
   Absolutely. It features Intelligent QoS that prioritizes latency-sensitive traffic such as voice and video for smoother performance.
4. How is the LiteBeam AC powered?
   It uses Passive PoE (24V, 0.5A) and comes with a Gigabit PoE adapter, eliminating the need for separate power cabling.
5. What kind of devices can connect to it?
   It supports all 5GHz-compatible airMAX devices, making it ideal for a range of client devices in WISP or enterprise setups.
6. What differentiates airMAX AC from traditional Wi-Fi?
   Ubiquiti’s airMAX TDMA technology assigns specific time slots for each client to send/receive data, reducing collisions and maximizing throughput in high-density deployments.

Shop the Latest Ubiquiti point-to-multipoint antennas in Kenya at TDK Solutions — your trusted Ubiquiti Networking shop in Kenya. Get high-speed outdoor wireless performance with carrier-grade reliability for PtP and PtMP deployments. Enjoy expert support, genuine products, and same-day dispatch across Kenya. Order your Ubiquiti LBE-5AC-16-120 LiteBeam AC Sector today and elevate your wireless infrastructure!
