Description

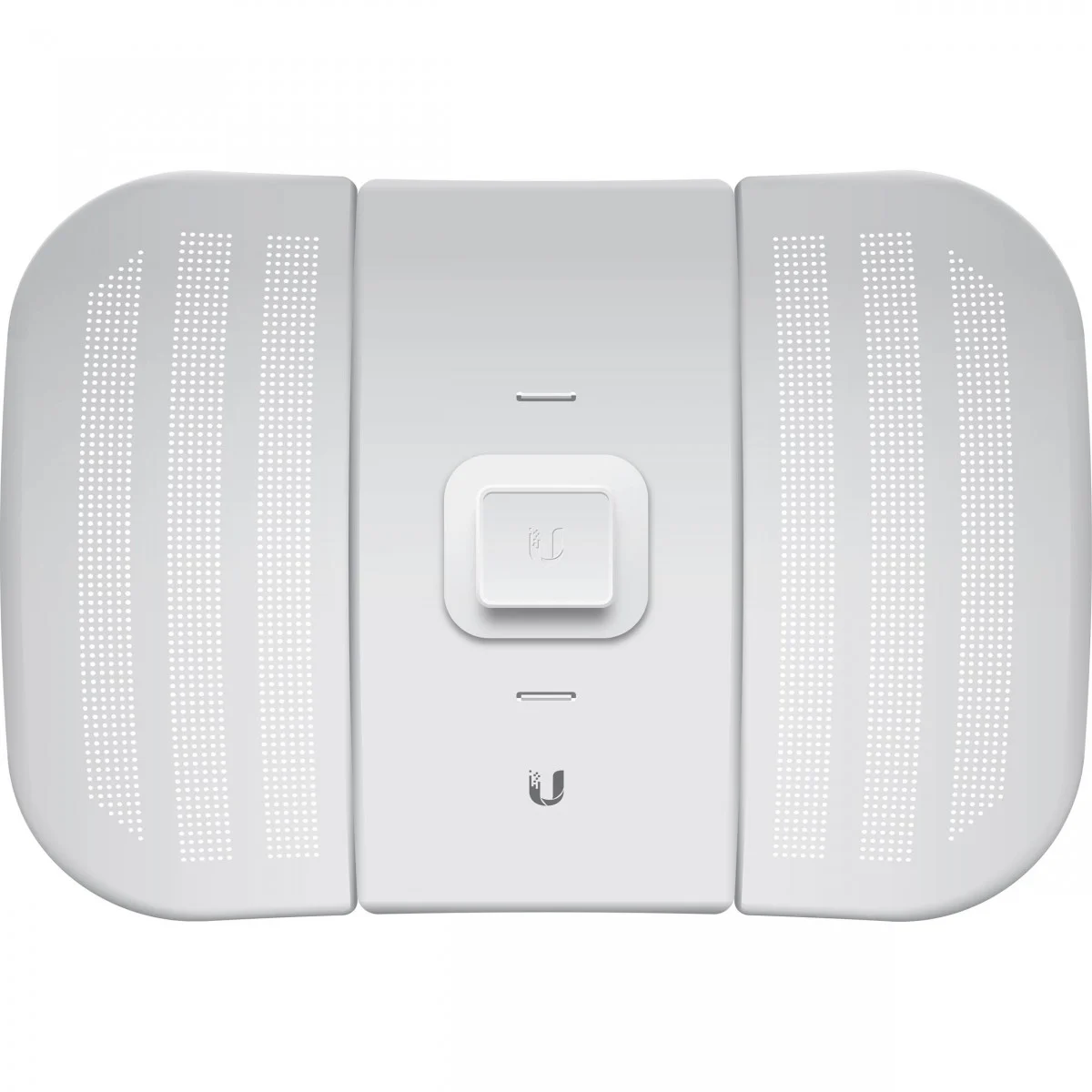

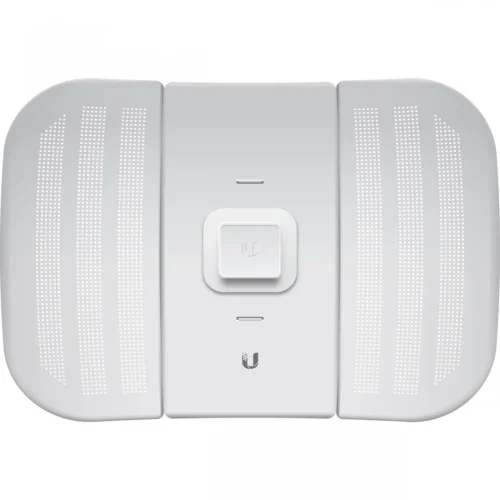

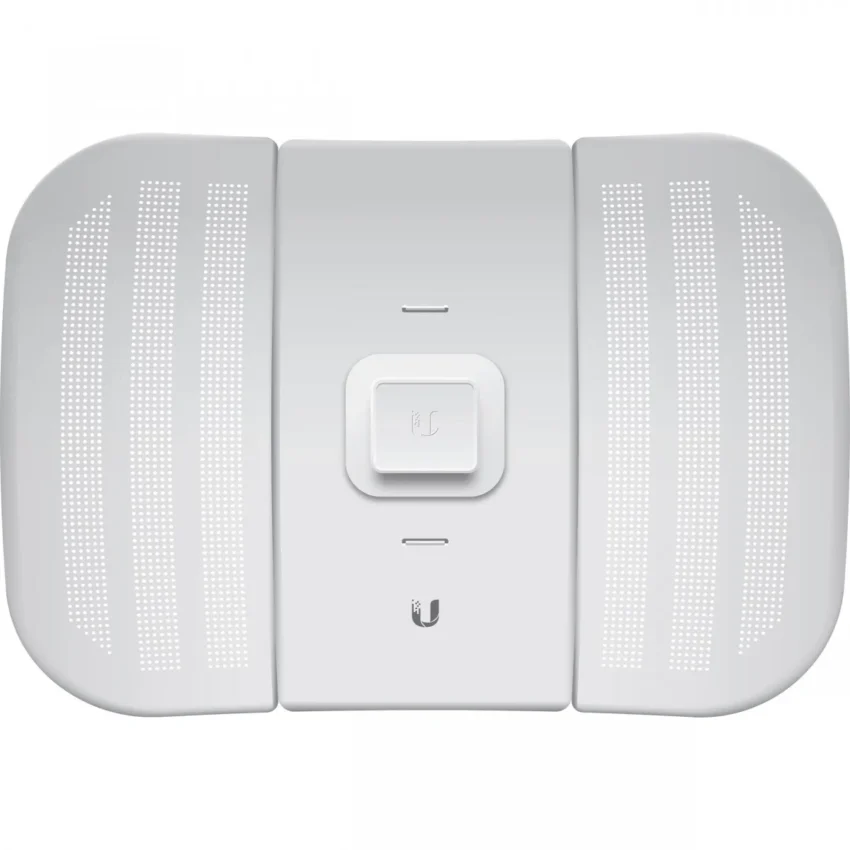

Ubiquiti LiteBeam M5 (LBE-M5-23)
Ubiquiti LiteBeam M5 (LBE-M5-23) is a high-performance 5GHz wireless broadband CPE designed for long-distance connectivity with exceptional throughput.
Its innovative design and advanced technology make it an ideal choice for WISP deployments and other wireless communication applications.
Specifications
Dimensions and Weight
- Dimensions: 362 x 267 x 184 mm (14.25 x 10.51 x 7.24 inches)
- Weight: 750 g (24.11 oz)
Performance and Power
- Max. Power Consumption: 4W
- Power Supply: 24V, 0.2A PoE Adapter (included)
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Environmental Specifications
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Operating Humidity: 5 to 95% (non-condensing)
- Wind Survivability: 200 km/h (125 mph)
- Wind Loading: 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Construction
- Enclosure: Outdoor UV Stabilized Plastic
- Shock and Vibration: Compliant with ETSI300-019-1.4
- ETSI Specification: EN 302 326 DN2
Networking Interface
- Ports: (1) 10/100 Ethernet Port
Memory and Processor
- Processor: MIPS 74K
Key Features
- High Gain: Offers 23 dBi of antenna gain for long-range connections.
- InnerFeed Technology: Integrates the entire radio system into the feedhorn, minimizing cable losses.
- airMAX TDMA Protocol: Enhances network performance, scalability, and efficiency.
- Versatile Mounting: Features a unique ball joint mounting system for easy alignment and installation.
- Three-Axis Adjustment: The LiteBeam M5 is designed for easy alignment, allowing for quick adjustments during installation without the need for specialized tools. Only a single wrench is needed for pole mounting.
- Compact and Lightweight: The LiteBeam M5’s lightweight form factor and compact packaging make it ideal for deployments where space and weight are considerations.
Common FAQs
- What is the maximum range of the LiteBeam M5?
The LiteBeam M5 can achieve long-distance connections of up to 10+ km under optimal conditions. - What throughput speeds can I expect?
You can expect throughput speeds of 450+ Mbps depending on the network configuration and conditions. - Is the LiteBeam M5 suitable for outdoor use?
Yes, it is specifically designed for outdoor deployment with a durable enclosure that can withstand various environmental conditions. - What power supply is included with the LiteBeam M5?
It comes with a 24V, 0.2A PoE adapter. - How is the LiteBeam M5 mounted?
The device includes a pole mounting kit and features a ball joint mounting system for flexible alignment. - Can I use the LiteBeam M5 in a point-to-point setup?
Yes, it is well-suited for both point-to-point (PtP) and point-to-multipoint (PtMP) applications.
Brand
Brand
Ubiquiti
Equip your home or business with high-performance networking solutions from the Ubiquiti Store in Kenya, We offer a wide range of Ubiquiti Products in Kenya such ad routers, access points, switches, and more.
Reviews (1)
1 review for Ubiquiti LiteBeam M5 (LBE-M5-23)
Add a review
You must be logged in to post a review.
Related products
-3%
-10%
P2P Antenna & Radios
Ksh 11,500.00 (Ksh 13,340.00 incl.VAT)
-12%
P2P Antenna & Radios

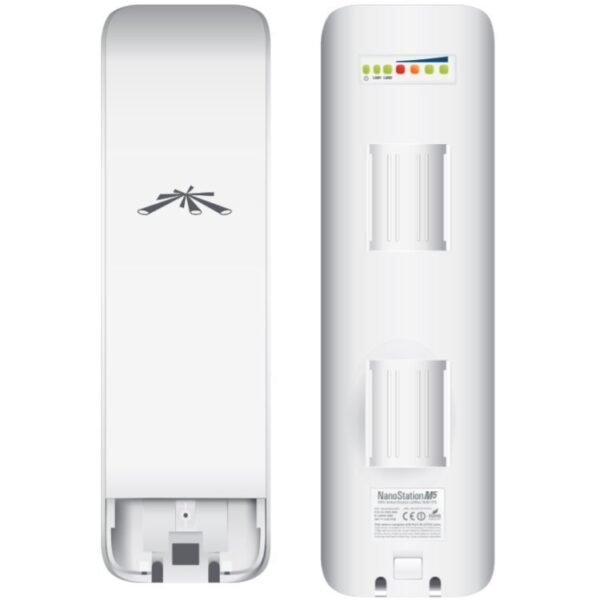

Ubiquiti Networks NanoStation locoM5 Indoor/Outdoor airMAX CPE
Ksh 11,500.00 (Ksh 13,340.00 incl.VAT)
sales@tdk.co.ke –
An Atheros radio with Ubiquiti software with everything you need for Point to Point Network Installation an absolute steal. Anyone familiar with Ubiquiti devices will be right at home with this device. Since it is made to be budget friendly, there are a few things you should know before buying and during configuration.
-The radio inside is 1×1 “SISO”, or Single Input Single Output. Even with airMAX, this is going to limit speeds to a maximum of MCS7 (72.2Mbps) even with AirMax enabled. For most people this isn’t an issue; if you need more throughput capability, Ubiquiti offers the Litebeam AC which has a 2×2 MIMO radio capable of higher speeds.
-To use this device as an AP “Access Point”, you may need to update the firmware. Some of the devices, mine included, ship with an older firmware revision that does not include the AP mode. To establish a point-to-point link from one location to another, AP mode must be enabled on the device at the location that is “sending” the connection.
-It is best practice for all devices that are communicating with each other to be on the same firmware revision. I had trouble communicating with another device on an older firmware revision that ended up working fine after updating.
-This device is capable of communicating with other Ubiquiti devices that use a 2×2 radio, albeit at slower speeds. With airMAX enabled, it will never show more than a maximum airMAX capacity of 50% when communicating with a 2×2 radio device.
-I could not communicate with a NanoStation M5 before I turned off the AirSelect feature on the NanoStation. I do not believe the Litebeam is capable of using this feature (It was not available as an option when the Litebeam was set up in AP mode) and it is not needed unless you are in a congested RF environment.
Overall, this device is a stellar value and should be considered when a reliable, cost-effective option is desired. Like all other Ubiquiti devices, if you’re not familiar with IT equipment and networking already, it will be a challenge for you to understand and configure. There are plenty of guides on the internet and forum support for assistance with setup if needed.
