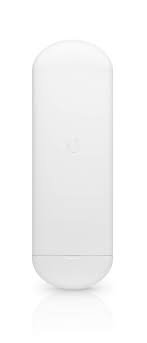

Ubiquiti airMAX NanoStation AC NS-5AC

Ubiquiti airMAX NanoStation AC is a compact, high-performance Customer Premises Equipment (CPE) designed for both indoor and outdoor use.

It features advanced airMAX AC technology along with a dedicated management Wi-Fi radio, ensuring robust connectivity and easy management.

Specifications

• Dimensions:
  • With Mount: 257 x 84 x 30 mm (10.12 x 3.31 x 1.18″)
  • Without Mount: 257 x 84 x 41 mm (10.12 x 3.31 x 1.61″)
• Weight: 233 g (8.22 oz)
• Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
• Max Power Consumption: 8.5W
• Power Method:
  • 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
  • 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain: 16 dBi
• Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports
• Channel Bandwidths: 10/20/30/40/50/60/80 MHz
• Processor Specs: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2
• Cross-pol Isolation: 20 dB Minimum
• Max VSWR: 1.6:1
• Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
• Polarization: Dual Linear
• Enclosure: UV Resistant Polycarbonate
• LEDs: (1) Power, Eth1, Eth2; (1) Signal Strength
• Mounting: Pole-Mount (Kit Included)
• Operating Temperature: -40 to 70 °C (-40 to 158 °F)
• Operating Humidity: 5 to 95% Noncondensing
• RoHS Compliance: Yes
• ESD/EMP Protection: ±24kV Contact/Air
• Shock & Vibration: ETSI300-019-1.4
• Certifications: CE, FCC, IC

Key Features

• Frequency: Operates on the 5GHz band.
• Throughput: Supports speeds of 450+ Mbps, making it suitable for bandwidth-intensive applications.
• Range: Achieves a remarkable range of 15+ km, allowing for long-distance connections.
• Management Radio: Integrated dedicated Wi-Fi radio for convenient management.
• UNMS App Compatible: Easily manage your network with the Ubiquiti Network Management System (UNMS) app.
• Sleek Industrial Design: This model reflects the next evolution in the iconic CPE design, enhancing the aesthetics and functionality that have transformed the Wireless ISP industry.
• Dual Ethernet Connectivity: The NS-5AC features two Ethernet ports, with the second port offering software-enabled PoE support, allowing you to power external devices like IP cameras seamlessly.
• Improved Surge Protection: Enhanced protection against ESD events ensures reliability in various environments.
• Management Wi-Fi Radio: The device includes a separate Wi-Fi radio, facilitating fast setup and configuration via mobile devices.

Common FAQs

• What are the primary applications for the NanoStation AC?
  It can be used as a high-performance access point or as a client device for connecting to other networks.

• How far can the NanoStation AC transmit?
  It can maintain a reliable connection over distances of 15+ km.

• Can I power external devices with the NanoStation AC?
  Yes, the second Ethernet port supports PoE, allowing you to power devices like IP cameras.

• Is the NanoStation AC easy to set up?
  Yes, it includes a dedicated management radio for fast and easy configuration via mobile devices.
