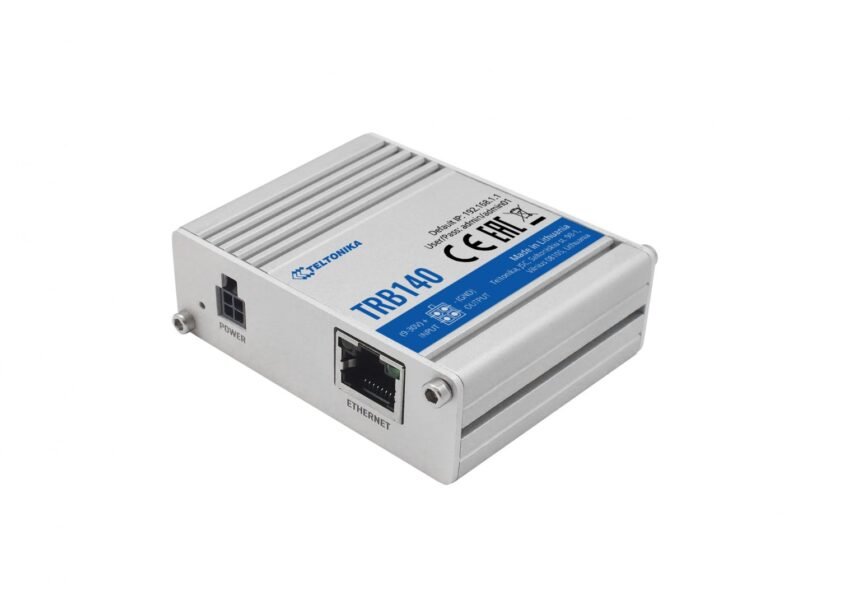

TELTONIKA industrial Ethernet to 4G LTE IoT gateway (TRB140)

Specification:

Hardware

Mobile: LTE(Cat4)/3G/2G
SIM slot: Mini SIM (2FF)
Antenna connector: 1 x SMA for LTE
Ethernet: 1 x 10/100/1000 Mbps
Input/Output: 2 x Digital Input/Output (configurable)
CPU: ARM Cortex-A7 1.2 GHz CPU
RAM: 128 MB (50 MB available for userspace)
Flash: 512 MB (70 MB available for userspace)
Input voltage range: 9 – 30 VDC
Power connector: 4 pin industrial DC power socket
Configuration interface: Virtual NIC via Micro-USB connector
LED Indicators: Power, signal, network and data status LEDs

Software

Operating System: Linux OS with Yocto SDK (offering high software customisation)
Network: NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( >25 service providers supported)
Remote management: RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
Status watchdogs: Ping reboot, periodic reboot
Additional features: Internet connectivity over USB virtual network interface

Mechanical & Environmental

Operating temperature: -40° C to 75° C
Storage temperature: -45° C to 80° C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 95% non-condensing
Dimensions: 60 mm x 70 mm x 18 mm
Weight: 35.8 g
