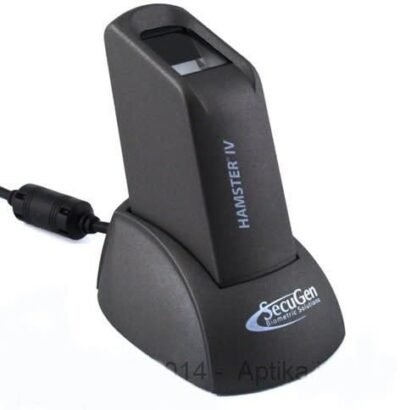

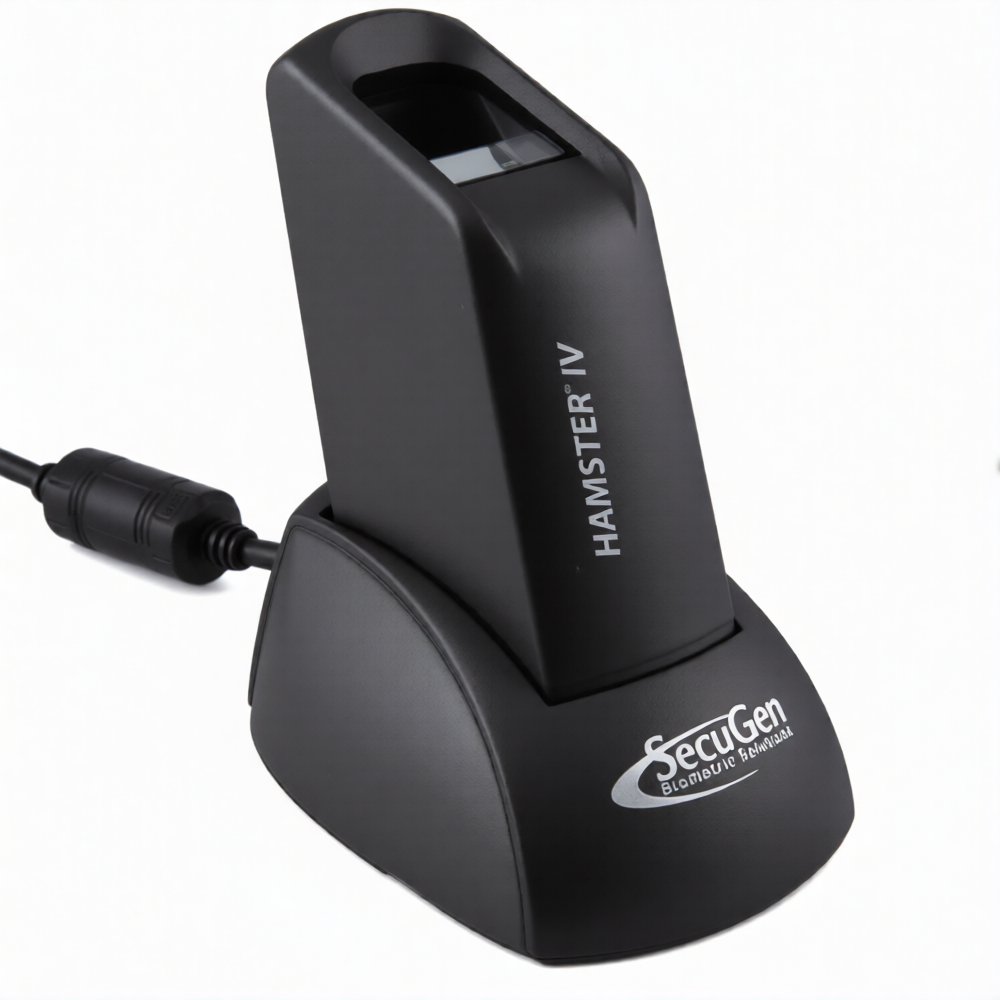

Secugen Hamster Iv Fingerprint Scanner

SecuGen Hamster IV is a high-performance PIV-compliant fingerprint scanner designed to provide accurate and secure single-finger capture for a wide range of applications.

It features the advanced SecuGen SDU03P optical fingerprint sensor for reliable fingerprint reading in various conditions, including those with difficult fingerprints, such as dry, wet, or scarred skin.

The scanner supports Auto-On™ and Smart Capture™ technologies, allowing it to automatically detect and scan a finger without the need for additional software or terminals.

With a robust optical sensor, this Hamster IV is scratch, impact, and vibration-resistant, making it highly durable. It is ideal for use in both PC and mobile device applications and is widely used in security and identity verification systems due to its compliance with standards like FIPS 201, FBI, and ISO/IEC 19794.

Specifications

• Model Name: Hamster IV (HSDU04P™, HFDU04™)
• Fingerprint Sensor: SecuGen SDU03P™ or FDU04™ (Optical)
• Image Resolution: 508 DPI
• Image Size: 258 x 336 pixels
• Platen Size: 16.1 mm x 18.2 mm
• Effective Sensing Area: 12.9 mm x 16.8 mm
• Fingerprint Capture Speed:
  • HSDU04P: 0.2 – 0.8 seconds (with Smart Capture™)
  • HFDU04: 0.4 – 1.2 seconds (with Smart Capture™)
• Operating Temperature: -20° ~ 65°C
• Operating Humidity: 90% or less RH (non-condensing)
• Dimensions: 27 x 40 x 73 mm
• Weight: 100 g (without stand)
• Supply Voltage: 5 V DC
• Max Current: 150 mA
• Interface: USB 1.1 Full-Speed, USB 2.0 Hi-Speed
• Certifications: FCC, CE, RoHS, FBI (PIV), GSA FIPS 201 APL STQC for UID
• Warranty: 1 Year Limited Warranty
• Supported Standards: ANSI INCITS 378, BioAPI, FIPS 201 (PIV), ISO/IEC 19794-2, ISO/IEC 19794-4, SP 800-76
• Supported Operating Systems: Windows 8.1 / 8 / 7 / Vista / XP / 2000 / 9x, Windows Server 2012 / 2008 R2 / 2003, Android (HSDU04P only), Java, Linux

Features

• Smart Capture™ Technology: Captures fingerprints from difficult fingers (dry, wet, scarred) with automatic adjustments for optimal image quality.
• Auto-On™ Function: The scanner automatically detects a finger and initiates scanning without needing additional software.
• Durable Design: Resistant to scratches, impacts, vibrations, and electromagnetic shock, ensuring long-term reliability.
• PIV and FIPS Compliant: Meets government and industry standards for secure biometric identification.
• High-Speed Capture: Scans and captures high-quality fingerprints in just 0.2 to 1.2 seconds, depending on the model.
• Wide OS Compatibility: Works with Windows, Android (HSDU04P), Linux, and Java, offering flexibility across various devices and platforms.
• Portable and Compact: Lightweight and easy to integrate into both PC and mobile applications.

Common FAQs

• What is the resolution of the SecuGen Hamster IV?
  • The Hamster IV offers 508 DPI image resolution, providing accurate fingerprint capture for secure identification.
• What are the key features of Smart Capture™ technology?
  • Smart Capture™ ensures high-quality fingerprint capture even from difficult fingers, such as those with dry, wet, scarred, or aged skin, by automatically adjusting the sensor’s brightness.
• Can the Hamster IV be used in varying lighting conditions?
  • Yes, the Hamster IV works in different lighting environments, including direct sunlight, making it versatile for outdoor and indoor use.
• Does the Hamster IV support mobile devices?
  • Yes, it supports mobile devices through USB connectivity, particularly with the HSDU04P model, compatible with Android devices.
• What operating systems are supported by the Hamster IV?
  • The scanner supports Windows (8.1/8/7/Vista/XP/2000), Windows Server, Android, Java, and Linux systems.
• Is the SecuGen Hamster IV suitable for government use?
  • Yes, the Hamster IV is FIPS 201 and FBI (PIV) certified, making it ideal for use in government, security, and identity verification applications.
