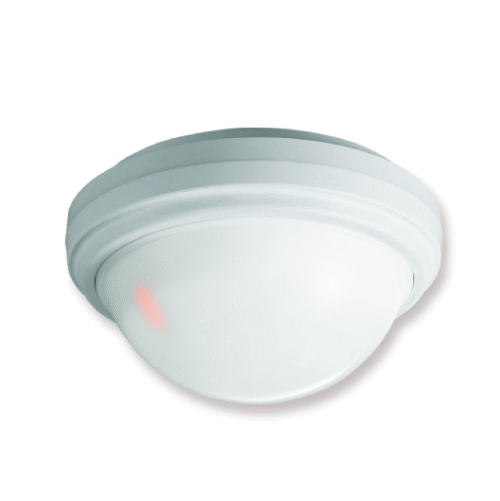

Optex SX-360Z Ceiling Mount PIR Detector with Zoom Control

Optex SX-360Z Ceiling Mount PIR Detector with Zoom Control is a high-performance motion sensor designed for comprehensive 360-degree coverage in a variety of environments.

Featuring flexible pattern adjustment with zoom functionality, this sensor ensures precise detection and adaptability to different room layouts.

This SX-360Z is equipped with a patented multi-focus lens that enhances detection accuracy by creating a dense coverage area with 276 zones, making it ideal for installations in areas requiring customizable coverage.

With selectable pulse counts and sensitivity settings, this PIR detector offers versatility and reliability in various commercial, industrial, and residential settings.

Specifications

• PIR Coverage: 18m diameter (360° zoom capability)
• Detection Zones: 276 dense zones for more accurate detection
• Sensitivity: 1.6°C at 0.6m/sec at 2.4m mounting height
• Detectable Speed: 0.3 to 1.8 m/sec (ideal for detecting human movement)
• Selectable Pulse Count: 1, 2, or 4 pulses
• Selectable Sensitivity: High, Medium, or Low settings for customizable detection performance
• Power Supply: 6 to 18 VDC
• Current Consumption: 18mA (max.)
• Alarm Period: 2.0 ± 0.5 seconds
• Alarm Output: Normally Closed (N.C.), 28 VDC, 0.2A max
• Tamper Switch: Normally Closed (N.C.), activates when cover is removed (30 VDC, 0.1A max)
• Warm-up Period: Approx. 20 seconds (LED blinks during warm-up)
• LED Indicator: LED blinks during warm-up and alarm condition
• Operating Temperature: -20°C to +50°C
• Environmental Humidity: Up to 95% max
• RFI Immunity: 30V/m
• Mounting Height: 2.4m to 5.0m (adjustable for various environments)
• Mounting Type: Ceiling mount
• Warranty: 5-year limited manufacturer warranty
• Certifications: uL/uLC listed for safety and quality assurance

Features

• Flexible Detection Pattern Adjustment with Zoom Function: The zoomable detection pattern allows for precise coverage, ideal for large or irregularly shaped rooms. The SX-360Z enables users to adjust the detection pattern to suit specific security needs.
• 360° Circular Coverage: This PIR sensor offers full 360-degree coverage, ensuring no blind spots and more reliable motion detection throughout the space.
• 276 Detection Zones: With a dense zone configuration, this detector can differentiate between different types of movement, significantly reducing false alarms.
• Selectable Pulse Count & Sensitivity: Choose between 1, 2, or 4 pulse counts, and set sensitivity levels (High, Medium, Low) for customizable detection depending on the environment.
• Patented Multi-Focus Lens Technology: The multi-focus lens enhances detection range and performance, ensuring reliable detection even in larger or more complex spaces.
• Tamper Protection: A built-in tamper switch ensures the system is protected against unauthorized access or interference.
• LED Indicator: The LED indicator helps with real-time monitoring, blinking during both the warm-up period and when an alarm condition is triggered.
• RFI Immunity: The SX-360Z is resistant to radio frequency interference up to 30V/m, providing stable performance in environments with high electromagnetic interference (EMI).
• Easy Integration: The detector is easy to install and integrate into existing security systems, with a wide operating temperature range and environmental humidity tolerance making it suitable for various indoor environments.

Common FAQs

• What is the detection range of the Optex SX-360Z?
  The SX-360Z provides 360° circular coverage with a detection range of up to 18 meters in diameter.
• Can I adjust the detection pattern on the Optex SX-360Z?
  Yes, the SX-360Z features a zoom function for flexible pattern adjustment, allowing you to tailor the detection area to the specific layout of the room.
• What is the selectable pulse count feature?
  The pulse count can be set to 1, 2, or 4, allowing you to control the sensitivity and response of the detector based on the type of environment (e.g., reducing false alarms in high-traffic areas).
• How many detection zones does the SX-360Z have?
  The Optex SX-360Z includes 276 dense detection zones, providing high precision in detecting movement and minimizing false alarms.
• Is the Optex SX-360Z resistant to tampering?
  Yes, the sensor includes a tamper switch that activates when the cover is removed, ensuring security against tampering.
