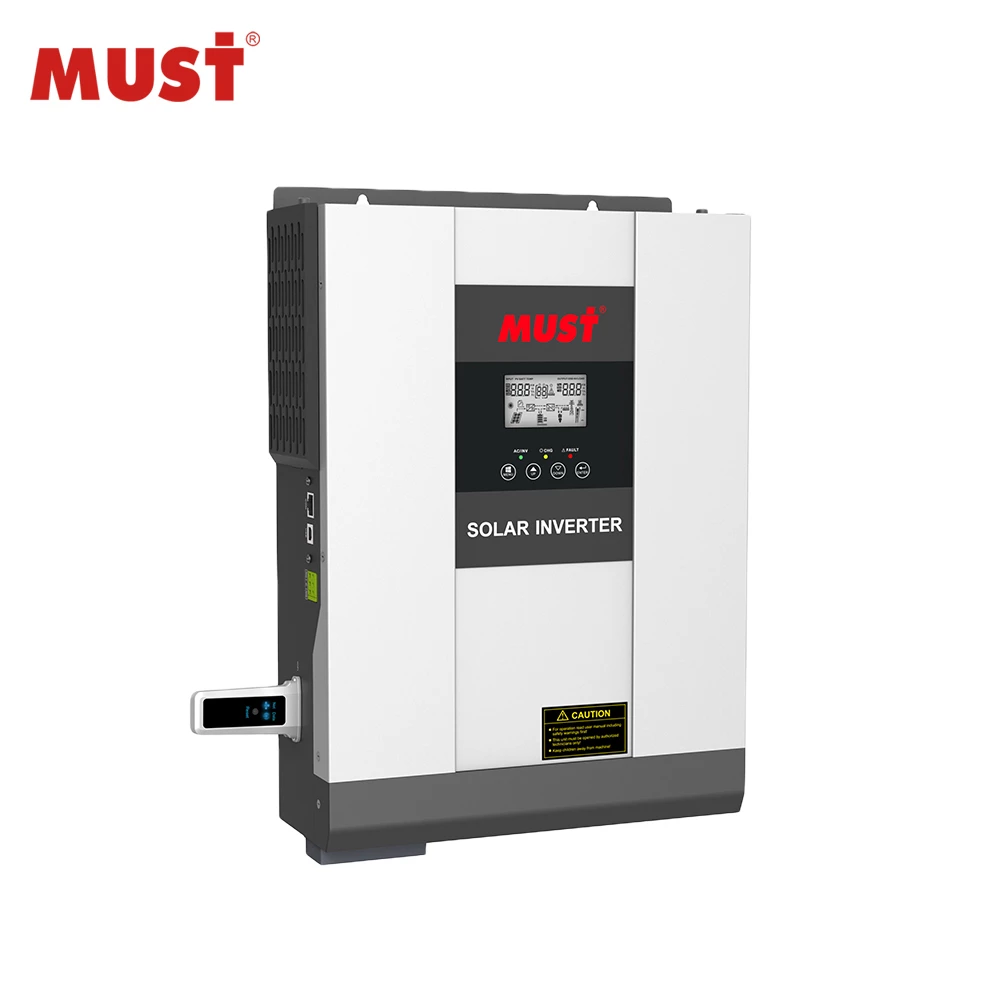

MUST PV18 VHM Series 3KW 3000W 24V Pure Sine Wave Home MPPT Solar Inverter Built In 80A Controller With WIFI Model
PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
- Pure sine wave solar inverter
- Output power factor 1
- High PV input voltage range
- Built-in 80A MPPT solar charger
- Battery equalization function to optimize battery performance and extend the lifecycle
- Built-in anti-dusk kit for harsh environment
|
MODEL |
PV18-2024 VHM |
PV18-3024 VHM |
PV18-3048 VHM |
PV18-4048 VHM |
PV18-5048 VHM |
PV18-5548 VHM |
|
Nominal Battery System Voltage |
24VDC |
48VDC |
||||
|
INVERTER OUTPUT |
||||||
|
Rated Power |
2000W |
3000W |
3000W |
4000W |
5000W |
5500W |
|
Surge Power |
4000W |
6000W |
6000W |
8000W |
10000W |
11000W |
|
Waveform |
Pure sine wave |
|||||
|
AC Voltage Regulation (Batt.Mode) |
(220VAC ~ 240VAC)±5% |
|||||
|
Inverter Efficiency (Peak) |
93% |
|||||
|
Transfer Time |
10ms（For Personal Computers） and 20ms（For Home appliances） |
|||||
|
AC INPUT |
||||||
|
Voltage |
230VAC |
|||||
|
Selectable Voltage Range |
170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105) |
|||||
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|||||
|
BATTERY |
||||||
|
Normal voltage |
24VDC |
48VDC |
||||
|
Floating Charge Voltage |
27VDC |
54VDC |
||||
|
Overcharge Protection |
31VDC |
60VDC |
||||
|
SOLAR CHARGER&AC CHARGER |
||||||
|
Maximum PV Array Open Circuit Voltage |
145VDC |
|||||
|
PV Array MPPT Voltage |
30~130VDC |
64~130VDC |
||||
|
Standby Power Consumption |
2W |
|||||
|
PV Input Power |
1440W/1920W |
2880W/3840W |
||||
|
Maximum Solar Charge Current |
60/80A |
|||||
|
Maximum Efficiency |
98% |
|||||
|
Maximum AC Charge Current |
20/30A |
60A |
||||
|
Maximum Charge Current |
80A |
120/140A |
||||
|
MECHANICAL SPECIFICATION |
||||||
|
Machine Dimensions (W*H*D)(mm) |
272*355*100 |
297.5*468*125 |
||||
|
Package Dimensions (W*H*D)(mm) |
540*395*241 |
638*395*241 |
||||
|
Net Weight(kg) |
11 |
12 |
14.3 |
|||
|
Gross Weight(kg) |
12.7 |
13 |
17.4 |
|||
|
OTHER |
||||||
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|||||
|
Operating Temperature |
0°C -55°C |
|||||
|
Storage Temperature |
-15°C -60°C |
|||||
