MikroTik RouterBOARD cAP 2nD. 2.4GHz Ceiling Access Point

MikroTik RouterBOARD cAP 2nD is a high-performance 2.4GHz ceiling access point designed to provide seamless wireless coverage for homes, offices, or small businesses.

Compact, easy to install, and feature-rich, the cAP 2nD delivers Wi-Fi 4 (802.11b/g/n) connectivity with speeds up to 300 Mbps, perfect for modern wireless applications.

Whether you need to extend Wi-Fi coverage in your office or enhance your network at home, the MikroTik cAP 2nD is a versatile, cost-effective solution for all your wireless needs.

Specifications

• Product Code: RBcAP2nD
• Architecture: MIPSBE
• CPU: QCA9533, 1 core, 650 MHz
• RAM: 64 MB
• Storage: 16 MB FLASH
• RouterOS License: Level 4
• Wireless Standards:
  • 2.4 GHz: 802.11b/g/n
  • Max Data Rate: 300 Mbps
  • Antenna Gain: 2 dBi
• Ethernet Ports:
  • 1 x 10/100 Ethernet Port
• Power Input: PoE-IN (11-57V)
• Max Power Consumption: 4W
• Cooling: Passive
• Mounting: Ceiling mount included
• Operating Temperature: -40°C to 70°C
• Certifications: CE, FCC, IC, EAC, ROHS
• Dimensions: 185mm diameter x 31mm height

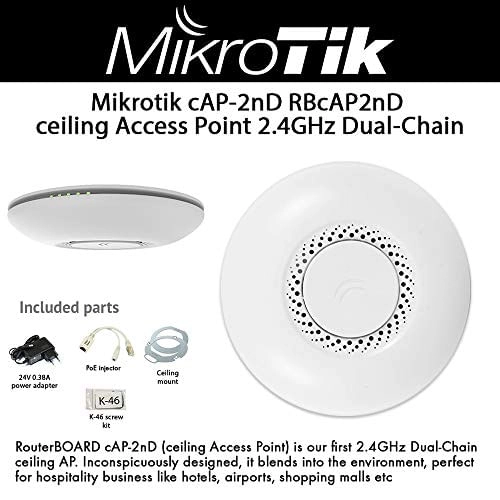

• Included Parts:
  • PoE Injector
  • K-46 Screw Kit
  • Ceiling Mount
  • 24V 0.2A Power Adapter

Key Features

• Dual Chain 2.4 GHz Wi-Fi: The cAP 2nD operates on the 2.4 GHz band with a maximum data rate of 300 Mbps, providing reliable wireless coverage for medium-sized areas. With 2 chains and 2 dBi antenna gain, it ensures stable signal strength and coverage even in challenging environments.
• Compact Ceiling-Mount Design: The cAP 2nD features a sleek, discreet design with a 185mm diameter and a 31mm height, making it perfect for ceiling installation. Its low profile makes it ideal for environments where a professional, minimalist appearance is preferred.
• Power Over Ethernet (PoE): Simplify installation with PoE support (802.3af/at). The cAP 2nD can be powered through the Ethernet cable, eliminating the need for a separate power adapter or outlet near the access point. The PoE input voltage is supported from 11V to 57V, giving flexibility in deployment.
• Efficient MIPSBE Architecture: Powered by the QCA9533 CPU with a 650 MHz clock speed, the cAP 2nD delivers smooth performance for everyday wireless tasks. Coupled with 64 MB of RAM and 16 MB of FLASH storage, the device handles standard networking operations effortlessly.
• RouterOS Support: Running on RouterOS with a Level 4 license, the cAP 2nD provides a wide range of features, including advanced wireless configurations, user management, bandwidth shaping, and network security options, making it an excellent choice for demanding networks.
• Passive Cooling: Designed for quiet operation, the cAP 2nD uses passive cooling, which means there are no fans or moving parts, ensuring silent operation while minimizing power consumption.
• Flexible Mounting: The cAP 2nD includes a ceiling mount and screw kit, making installation easy and secure. It is certified for operation in temperatures ranging from -40°C to 70°C, so it’s suitable for both indoor and outdoor environments in temperate climates.

Applications

• Office & Commercial Spaces: Perfect for providing high-speed wireless coverage in office environments, retail stores, or cafes. Install the cAP 2nD on the ceiling for a discreet, effective solution that enhances employee and customer experience with reliable wireless performance.
• Home Networks: Improve your home Wi-Fi network with the cAP 2nD for seamless coverage across larger homes or multi-floor buildings. Its low-profile design blends easily into any room and extends coverage to hard-to-reach areas.
• Small Businesses: Ideal for small business environments, the cAP 2nD offers fast, secure Wi-Fi for employees and customers, supporting multiple devices and ensuring a smooth network experience.
• High-Temperature Environments: With its wide operating temperature range (-40°C to 70°C), the cAP 2nD is suited for installation in environments with temperature fluctuations, such as warehouses, outdoor patios, and industrial settings.
