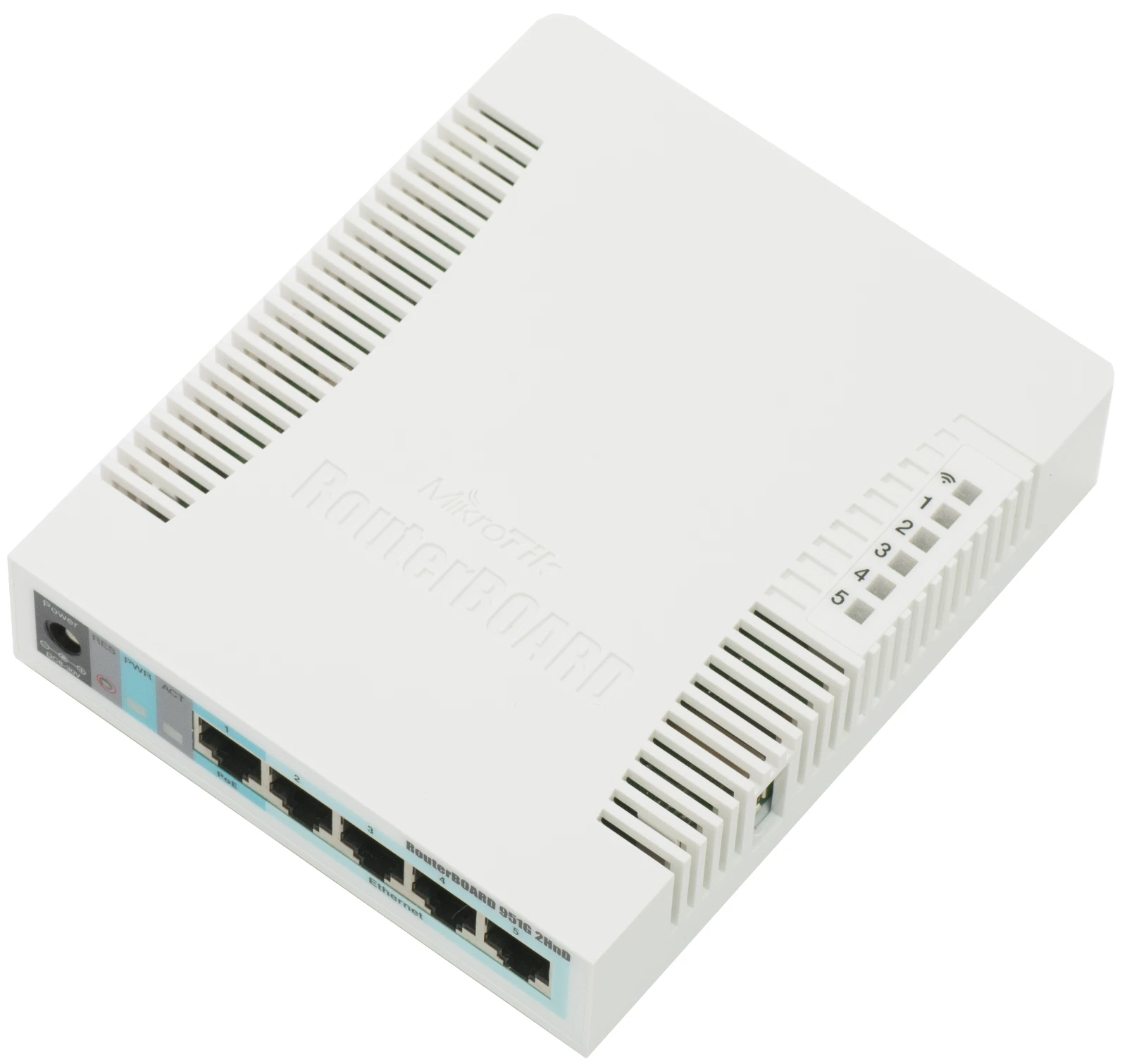

MikroTik RB951G-2HnD RouterOS L4 128MB RAM 5xGig LAN 1xUSB 2.4GHz

MikroTik RB951G-2HnD is a feature-packed home and office router with RouterOS L4 for advanced networking features and reliable wireless performance.

Whether you’re looking for a high-speed wireless router or an advanced network management solution, this versatile device delivers both Gigabit Ethernet connectivity and 2.4GHz wireless support for seamless internet access, file sharing, and network management.

Ideal for home networks, small businesses, and office setups, the RB951G-2HnD combines the power of RouterOS L4, with support for dynamic routing, OSPF, BGP4, and more, ensuring high-performance and flexibility in routing.

With 128MB RAM, five Gigabit Ethernet LAN ports, and a USB 2.0 port, this device offers comprehensive network features at a competitive price.

Specifications

• Product Code: RB951G-2HnD
• Architecture: MIPSBE
• CPU: QCA9531 (1-core, 600 MHz)
• RAM: 128MB SDRAM
• Storage: 16MB Flash
• RouterOS License: L4 (Advanced routing features included)
• Dimensions: 113mm (W) x 138mm (D) x 29mm (H)
• Weight: 230g
• Wireless: IEEE 802.11b/g/n (2.4GHz)
• Antenna Gain: 2.5 dBi for improved signal range
• Ports:
  • WAN: 1 x 10/100/1000BaseT (RJ45)
  • LAN: 4 x 10/100/1000BaseT (RJ45)
  • USB: 1 x USB 2.0 Port
• Power Supply: DC Jack (10-30V)
• Max Power Consumption: 6W
• Cooling Type: Passive cooling

Supported Routing Protocols:

• Static Routing: Simple, direct routing between devices.
• Dynamic Routing: Automatically updates routing tables for optimized data flow.
• OSPF (Open Shortest Path First): Efficient, flexible routing protocol for large networks.
• BGP4 (Border Gateway Protocol): Standard protocol used for routing between autonomous systems.
• VRRP (Virtual Router Redundancy Protocol): Ensures failover protection by providing automatic routing backup.

Wireless Features:

• IEEE 802.11b/g/n: Supports wireless speeds up to 300Mbps on the 2.4GHz band for excellent performance in most home and small office environments.
• Antenna Gain: 2.5 dBi built-in antenna for extended coverage and improved signal strength.
• Wireless Standards: Supports b/g/n standards, making it compatible with a wide range of devices and offering improved performance over older standards.

Key Features

• Gigabit Ethernet Ports: The RB951G-2HnD features 1 WAN port and 4 LAN ports, each supporting 10/100/1000BaseT (RJ45) for high-speed wired connections.
• Wireless 2.4GHz Support: With built-in 2.5dBi antenna for better coverage, this router supports IEEE 802.11b/g/n wireless standards for speeds up to 300Mbps on the 2.4GHz band. Enjoy fast and stable wireless performance for browsing, streaming, and gaming.
• 128MB RAM: With 128MB SDRAM, the RB951G-2HnD provides smooth performance and efficient multitasking for both home and office use.
• USB Port: The USB 2.0 port allows you to connect external storage devices or a 3G/4G modem for backup internet connectivity.
• RouterOS L4: Equipped with RouterOS L4 license, this router offers advanced networking features such as Static Routing, OSPF, BGP4, VRRP, and more.
• GUI/Web Management: Easily manage and monitor your network through the Graphical User Interface (GUI) or WEB management interface for a user-friendly experience.
• Compact & Durable: Designed with a 29mm height, 113mm width, and 138mm depth, the RB951G-2HnD is compact yet powerful, weighing only 230g.

Common FAQs

1. What is the maximum wireless speed of the RB951G-2HnD?

The RB951G-2HnD supports wireless speeds of up to 300Mbps on the 2.4GHz band (IEEE 802.11n).

2. Can I use this router for advanced routing needs?

Yes! The RouterOS L4 license offers advanced features such as OSPF, BGP4, and VRRP, making it suitable for both home and small office networks that require complex routing.

3. How can I manage the RB951G-2HnD?

You can manage the device using the WEB management interface or Graphical User Interface (GUI). It also supports remote configuration through RouterOS for more advanced users.

4. Does it support 3G/4G failover?

Yes! The USB 2.0 port can be used to connect a 3G/4G modem for backup internet connectivity, ensuring uninterrupted service in case your main internet connection goes down.

5. How do I set up the wireless network?

Setting up wireless is simple using the RouterOS management interface. You can easily configure SSID, security settings, and Wi-Fi performance to suit your needs.
