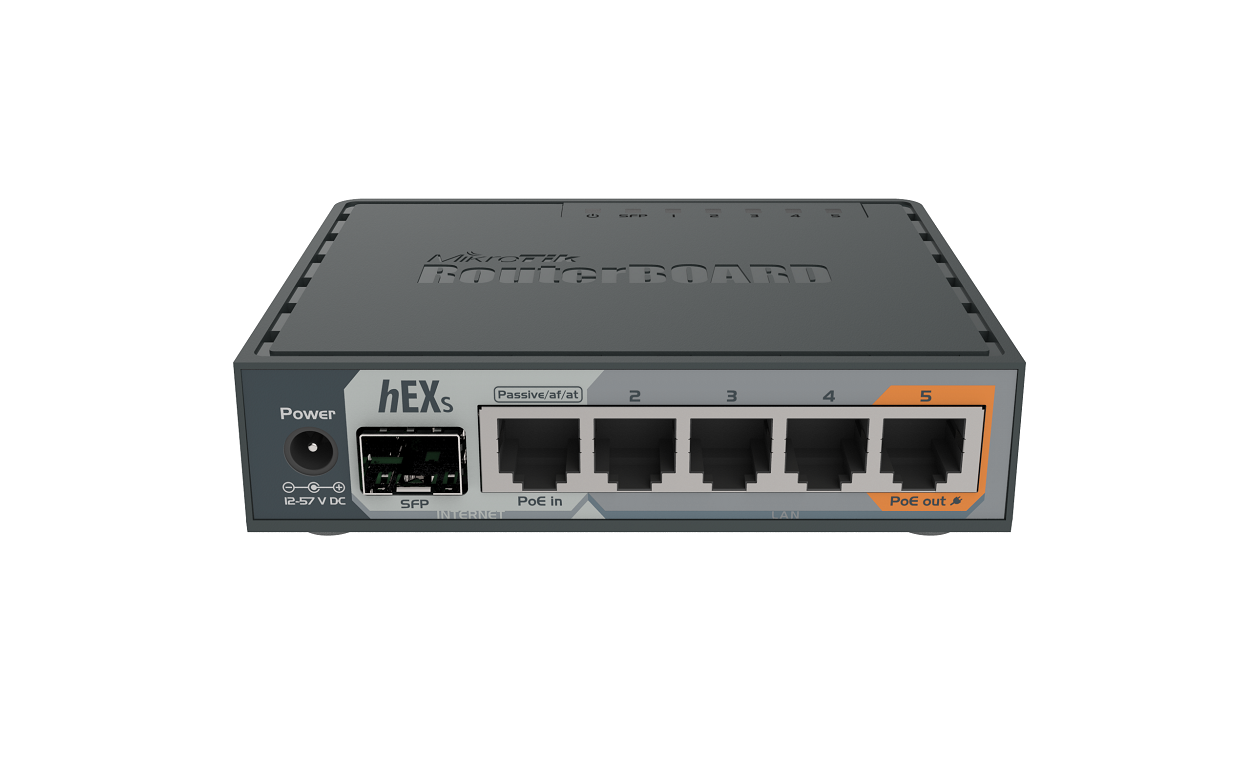

Mikrotik RB760iGS hEX S 5x Gigabit Ethernet SFP Dual Core 880MHz CPU @ Tdk Solutions , Nairobi Kenya

MikroTik RB760iGS hEX S is a powerful yet affordable Gigabit Ethernet router designed for environments where wireless connectivity is not required.

Perfect for home networks, small offices, and enterprise solutions, the RB760iGS combines five Gigabit Ethernet ports and an SFP port for high-speed fiber connectivity.

With a robust dual-core 880 MHz CPU, 256 MB RAM, and advanced RouterOS features, the hEX S is ideal for handling even the most demanding network tasks.

Specifications

• Product Code: RB760iGS
• CPU: MT7621A (Dual-Core, 880 MHz)
• CPU Threads: 4
• RAM: 256 MB
• Storage: 16 MB Flash
• RouterOS License: L4 (Advanced routing and VPN features)
• SFP Port: 1 x 1.25 Gbps SFP cage for fiber optic connections
• Ethernet Ports: 5 x Gigabit Ethernet Ports (10/100/1000 Mbps)
• PoE Output: PoE on Port 5 (Passive PoE up to 57V)
• USB Port: 1 x USB 2.0 (for 3G/4G modem or storage)
• microSD Slot: Yes, for additional storage (microSD card not included)
• Power Supply: 24V 1.2A power adapter (included)
• Cooling Type: Passive Cooling
• Dimensions: 113 x 89 x 28 mm
• Weight: 230 g
• Certifications: CE, EAC, RoHS
• Operating Temperature: -40°C to 70°C

Powering & Connectivity:

• PoE Input: Supports 802.3af/at PoE input (12-57V), making it flexible in various power setups.
• Power Consumption: Max power consumption of 24W, with PoE output maxing at 500mA per port.
• Cooling: The router features passive cooling, ensuring silent operation without the need for active fans.

Supported Routing Protocols:

• Static Routing: Basic routing for straightforward networks.
• Dynamic Routing: Automatically adjusts routes for efficient data flow.
• OSPF (Open Shortest Path First): Efficient routing protocol for scalable networks.
• BGP4 (Border Gateway Protocol): Best for larger networks with multiple ISPs.
• IPsec VPN: Hardware-accelerated IPsec encryption for secure connections.

Key Features

• Five Gigabit Ethernet Ports: Equipped with five Gigabit Ethernet ports, including Ethernet port #5 with PoE output, allowing you to power PoE-enabled devices directly from the router. This makes the RB760iGS hEX S perfect for powering IP cameras, wireless access points, and other PoE-capable devices.
• SFP Port: The 1.25 Gbps SFP cage enables fiber optic connectivity for businesses or setups requiring high-speed, long-distance networking. This is ideal for network expansion, connecting remote locations, or utilizing high-speed fiber internet.
• Dual-Core 880 MHz CPU: Powered by the MT7621A dual-core processor with 880 MHz frequency, this router ensures smooth performance for multiple users, heavy data traffic, and advanced configurations in RouterOS.
• 256MB RAM: The 256MB RAM ensures stable performance for routing, VPN configurations, and the execution of multiple simultaneous tasks like bandwidth shaping, monitoring, and firewall management.
• USB 2.0 Port: Connect external devices such as a 3G/4G USB modem or USB storage for additional network features or file storage. This is ideal for backup internet connections or storing important network files and logs.
• PoE Out (Ethernet Port #5): The PoE output on port #5 allows you to power PoE-compatible devices (up to 57V) with the same voltage applied to the router, simplifying the power management of remote devices.
• IPsec Hardware Encryption: With IPsec hardware acceleration capable of processing up to 470 Mbps of encryption, this router offers secure VPN solutions with minimal performance impact, ideal for remote workers or secure site-to-site connections.
• microSD Slot: The microSD card slot allows you to expand the storage for RouterOS configurations, logs, or even for use with The Dude network management software, enhancing your monitoring capabilities.

Common FAQs

1. Can the hEX S handle high-speed fiber internet?

Yes, the hEX S comes with an SFP port supporting 1.25 Gbps fiber connections, perfect for high-speed internet and connecting remote offices or locations.

2. What devices can I power through the PoE output?

Port #5 provides PoE output (up to 57V) and can power PoE-capable devices, such as wireless access points, IP cameras, or VoIP phones.

3. Can I store files on the router?

Yes! The microSD slot allows you to use external storage, improving read/write speeds for file storage, and can also be used with The Dude network monitoring software for enhanced network visibility.

4. What are the cooling requirements?

The hEX S features passive cooling, meaning it operates silently and doesn’t require an active fan, making it ideal for quiet, compact installations.

5. How do I manage the hEX S?

The device is easily managed through the RouterOS interface, which offers powerful network configuration, monitoring, and management features via Web GUI, CLI, or WinBox.
