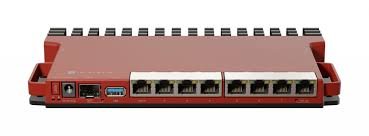

MikroTik L009UiGS-RM Wired Router – 2.5 Gigabit Ethernet, Gigabit Ethernet, Red

MikroTik L009UiGS-RM Wired Router is a high-performance, compact wired router designed to meet the demands of modern networks.

Featuring 2.5 Gigabit Ethernet and Gigabit Ethernet ports, it offers lightning-fast data speeds for small businesses, home offices, or high-performance home networks.

With a robust design and enhanced RouterOS v7 capabilities, this device is perfect for users requiring high-speed wired connections, PoE power options, and fiber-optic compatibility.

Available in a sleek red design, the L009UiGS-RM provides excellent performance, reliability, and advanced networking features, making it an ideal solution for a wide range of applications.

Specifications

• Product Code: L009UiGS-RM
• Architecture: ARM
• CPU: IPQ-5018, Dual-Core, 800 MHz
• Switch Chip: 88E6190
• RAM: 512 MB
• Storage: 128 MB NAND
• RouterOS Version: v7
• Ethernet Ports:
  • 1 x 2.5G Ethernet Port
  • 5 x Gigabit Ethernet Ports (10/100/1000)
• SFP Port: 1 x 2.5G SFP
• PoE Output: 1 x PoE-out (Ethernet Port 8)
• PoE Input: 24V-56V (802.3af/at)
• USB Port: 1 x USB 3.0 Type-A (Max 1.5A)
• Cooling: Passive
• Power Consumption: Max 47W
• Dimensions: 285 x 103 x 34 mm
• Certifications: CE, FCC, IC, EAC, RoHS
• Operating Temperature: -40°C to 70°C

Wireless Capabilities:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Max Data Rate: 574 Mbps (2.4 GHz)
• Antenna Gain: 4 dBi
• Wireless Chip Model: IPQ-5018
• Wireless Number of Chains: 2

Key Features

• 2.5 Gigabit Ethernet Port: The L009UiGS-RM comes equipped with a 2.5G Ethernet port, providing ultra-fast data transfer speeds for high-bandwidth applications such as video conferencing, streaming, and gaming. Perfect for environments where fiber connections or high-speed internet are essential.
• Gigabit Ethernet Ports: In addition to the 2.5G Ethernet port, the router features 5 Gigabit Ethernet ports, ensuring high-speed, low-latency connections for a variety of wired devices, including computers, network switches, and NAS systems.
• Wi-Fi 6 Ready: Although the L009UiGS-RM is a wired router, it is built with Wi-Fi 6 (802.11ax) technology, offering support for faster wireless speeds and greater capacity when paired with compatible Wi-Fi 6 devices.
• Dual-Core 800 MHz CPU: Powered by the IPQ-5018 dual-core processor running at 800 MHz, the router can handle demanding tasks with ease, such as advanced routing, firewalling, and supporting complex network configurations.
• 512 MB RAM & 128 MB NAND Storage: Equipped with 512 MB of RAM and 128 MB of NAND storage, this router provides the processing power and storage space needed for optimal performance and easy network management.
• RouterOS v7: The L009UiGS-RM runs RouterOS v7, MikroTik’s most advanced operating system. It includes a wide range of features like advanced routing, VLAN, VPN support, firewall management, and more, making it suitable for enterprise-grade network setups.
• 2.5G SFP Port: The L009UiGS-RM features a 2.5G SFP port, enabling fiber-optic connectivity for even higher speeds and greater bandwidth, perfect for users looking to scale their network or integrate with fiber infrastructure.
• PoE-In and PoE-Out: The PoE-in feature allows the router to be powered via PoE (Power over Ethernet), providing convenience and flexibility in installations. Additionally, the PoE-out on Ethernet Port 8 can power other PoE-enabled devices such as IP cameras and access points.
• Compact Rackmount Design: The L009UiGS-RM is designed to fit in a 1U rackmount configuration, making it ideal for use in data centers, server rooms, or environments where space is limited.
• Cooling and Efficiency: The router uses passive cooling, ensuring silent operation and energy efficiency, without the need for fans or noise.

Common FAQs

1. What is the maximum speed of the Ethernet ports?

The L009UiGS-RM has 1 x 2.5G Ethernet port for ultra-fast wired connections, and 5 Gigabit Ethernet ports for high-speed data transfer across various wired devices.

2. Can I power devices using PoE?

Yes, the router supports PoE-out on Ethernet port 8, enabling you to power PoE-enabled devices such as access points, IP cameras, and other network equipment.

3. What is the SFP port used for?

The L009UiGS-RM includes a 2.5G SFP port, which allows you to connect to fiber optic networks for high-speed, high-bandwidth data transfer, ensuring future-proof network expansion.

4. Can I use this router for a business network?

Yes, the L009UiGS-RM is ideal for businesses, offering high-speed wired connections, PoE support, and the ability to connect to fiber networks with the SFP port, all managed through the advanced RouterOS v7.

5. What is the cooling method?

The router uses passive cooling, meaning it operates silently and efficiently without fans, making it suitable for environments that require quiet operation.
