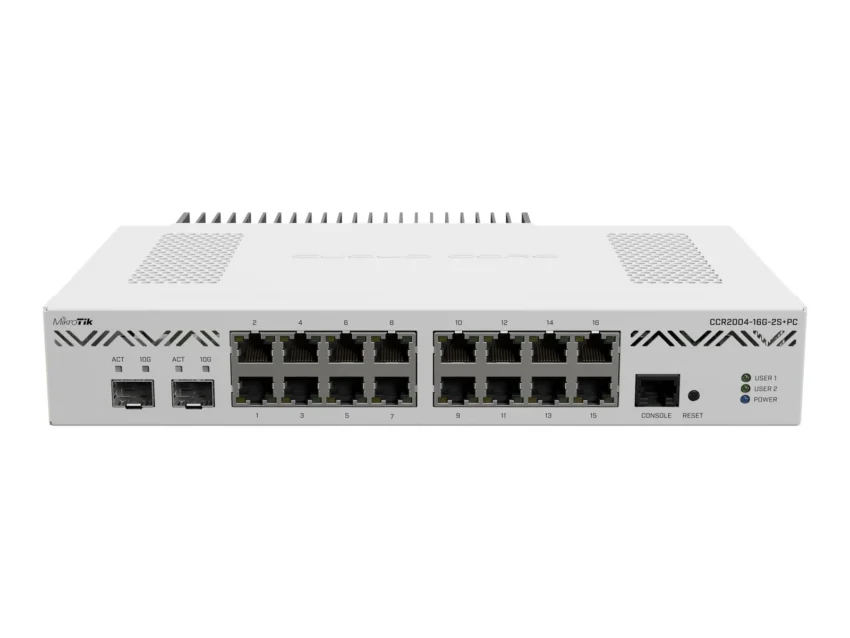

Mikrotik CCR2004-16G-2S+PC Ethernet Router 16x Gigabit Ethernet Ports 2x10G SFP+

MikroTik CCR2004-16G-2S+PC is a high-performance Ethernet router designed to deliver exceptional speed, reliability, and scalability for large networks.

With 16 Gigabit Ethernet ports and 2 x SFP+ 10Gbps ports, this powerful router is ideal for data centers, ISPs, and enterprises requiring advanced network routing, high-speed fiber connections, and robust security features.

Powered by a quad-core ARM processor, 4 GB of RAM, and RouterOS v7, it is designed to handle complex configurations and high-throughput tasks with ease.

Specifications

• Product Code: CCR2004-16G-2S+PC
• Architecture: ARM 64-bit
• CPU: AL32400, Quad-Core, 1200 MHz
• Switch Chip: 88E6191
• RAM: 4 GB
• Storage: 128 MB NAND
• RouterOS Version: v7
• Ethernet Ports:
  • 16 x Gigabit Ethernet Ports (10/100/1000)
• SFP+ Ports: 2 x 10Gbps
• Power Supply:
  • Dual DC Inputs (36-57V)
  • 48V 0.95A Power Adapter Included
• Max Power Consumption: 36W
• Cooling: Passive Cooling (Fanless)
• Dimensions: 272 x 195 x 44 mm
• Certifications: CE, EAC, RoHS
• Operating Temperature: -20°C to 60°C
• Included Parts:
  • Rackmount Ears
  • K-83 Screw Kit

Key Features

• 16 Gigabit Ethernet Ports: The CCR2004-16G-2S+PC features a total of 16 Gigabit Ethernet ports (10/100/1000), providing ample connectivity for devices such as computers, servers, network switches, and access points. With so many ports, it is the perfect solution for businesses and large homes that need extensive wired connectivity.
• 2 x SFP+ 10Gbps Fiber Ports: The router is equipped with 2 SFP+ ports, capable of delivering speeds up to 10 Gbps for high-performance fiber-optic connections. Whether for backbone connections, high-speed internet access, or connecting data centers, these SFP+ ports provide the scalability and speed required for demanding applications.
• ARM 64-bit Quad-Core CPU: The CCR2004 is powered by the AL32400 quad-core ARM processor running at 1200 MHz, providing the processing power needed for fast, efficient routing of data. The processor is designed to handle high-throughput applications, advanced networking protocols, and complex configurations, making it suitable for even the most demanding environments.
• 4 GB RAM & 128 MB NAND Storage: With 4 GB of RAM and 128 MB NAND storage, the CCR2004 offers excellent memory and storage capabilities for running RouterOS v7 with ease. The ample memory allows the router to handle large amounts of traffic and data, and the NAND storage ensures fast read/write operations for system logs and configuration files.
• IPsec Hardware Acceleration: The router comes with IPsec hardware acceleration, which allows for efficient, secure VPN connections and enhances overall routing performance. This feature is crucial for businesses requiring secure remote access or site-to-site VPNs with high encryption standards.
• Passive Cooling: The CCR2004-16G-2S+PC utilizes passive cooling, ensuring silent operation even in high-performance conditions. This fanless design makes it ideal for office environments, data centers, and server rooms where noise is a concern.
• Dual DC Input for Redundancy: For added reliability, the router features dual DC inputs (DC jack and 2-pin terminal), both supporting 36V to 57V input voltage. This provides power redundancy and ensures uninterrupted operation even in the event of a power supply failure.
• RouterOS v7: The router runs on RouterOS v7, which offers an extensive set of features including advanced routing protocols, firewall management, VPN support, QoS, and traffic shaping. RouterOS is known for its flexibility, scalability, and security, making it suitable for small to large-scale network setups.

Applications

• Data Centers & ISP Networks: With 2 x 10Gbps SFP+ ports and 16 Gigabit Ethernet ports, the CCR2004 is an excellent choice for data center operations and ISP networks. It provides the necessary bandwidth and connectivity for high-volume traffic, fiber-to-the-premises (FTTP) installations, and more.
• Enterprise & SMB Networks: The CCR2004-16G-2S+PC is ideal for enterprise networks and small-to-medium-sized businesses requiring advanced routing, VPN configurations, and high-speed fiber-optic connections.
• High-Performance Routing: Whether you need advanced network management, security, or traffic shaping, the CCR2004 delivers high performance for routing complex traffic with ease.
• Home Labs & Power Users: For home network enthusiasts and power users, the CCR2004 offers high-performance routing, multiple Ethernet ports, and fiber-optic support, making it perfect for lab setups, advanced networking, and experimentation.
