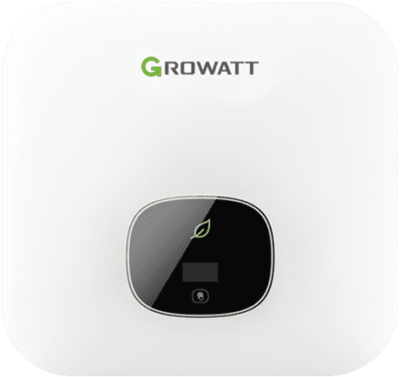

Growatt MIN 2500 TL Grid-Tie Single Phase Solar Inverter
Growatt MIN 2500 TL Grid-Tie Single Phase Solar Inverter
The latest Growatt MIN 2500 TL-XE residential inverter features a compact and functional design. The inverter is the successor to the Growatt MTL-S version and has a number of improvements.
Growatt introduced the residential inverter to the public at Solar Solutions International for the first time. There she announced that this would be the successor to the Growatt MTL-S version.
Simple and easy to use
The Growatt MIN 2500 TL-XE inverter has a functional and compact design. This saves the installer time and costs of installing the PV installation. The inverter has a number of new functions such as the OLED Display and Touch button. The inverter has support for export control and Type II SPD on the DC side. This makes this new series of Growatt inverters perfect for PV installation.
Efficient power generation
The inverter has a Max performance efficiency of 98.4% and therefore achieves the maximum energy yield from the PV installation. The inverter has an AC / DC ratio of 1.4 and has a double MPP Tracker.
Strong adaptability
With the Battery-ready XH interface, it is possible to expand to a storage system whenever you want. This is entirely your own choice and the option is always possible.
Improvements
The Growatt MIN 2500 TL-XE has a number of improvements compared to its predecessor. The inverter is 30% lighter and equipped with a double MPP Tracker. The inverter has a new design with OLED Display and a touch button. The MIN version of Growatt inverters is also better suited against water and dust. As a result, the inverter lasts longer and more energy can be obtained from the PV system. The inverter is easy to install and comes with SPD type II
Specifications
SKU | GROWATT MIN 2500 XE |
---|---|
BRAND | Growatt |
MANUFACTURER | Growatt |
COUNTRY OF MANUFACTURE | China |
WARRANTY IN YEARS | 10 |
HS-CODE | 85044084 |
TYPE | Single-phase |
MAX. DC- INPUT CAPACITY (W) | 3500 |
AC-NOMINAL OUTPUT POWER | 2500 |
NUMBER OF MPPT | 2 |
DEGREE OF PROTECTION (IP) | IP65 |
SUITABLE FOR OUTDOOR MOUNTING | Yes |
HYBRID INVERTER | No |
---|---|
DC SWITCH | Yes |
SURGE PROTECTION | Type II DC |
TRANSFORMER | No |
DATA LOGGING | No |
DISPLAY | Yes |
