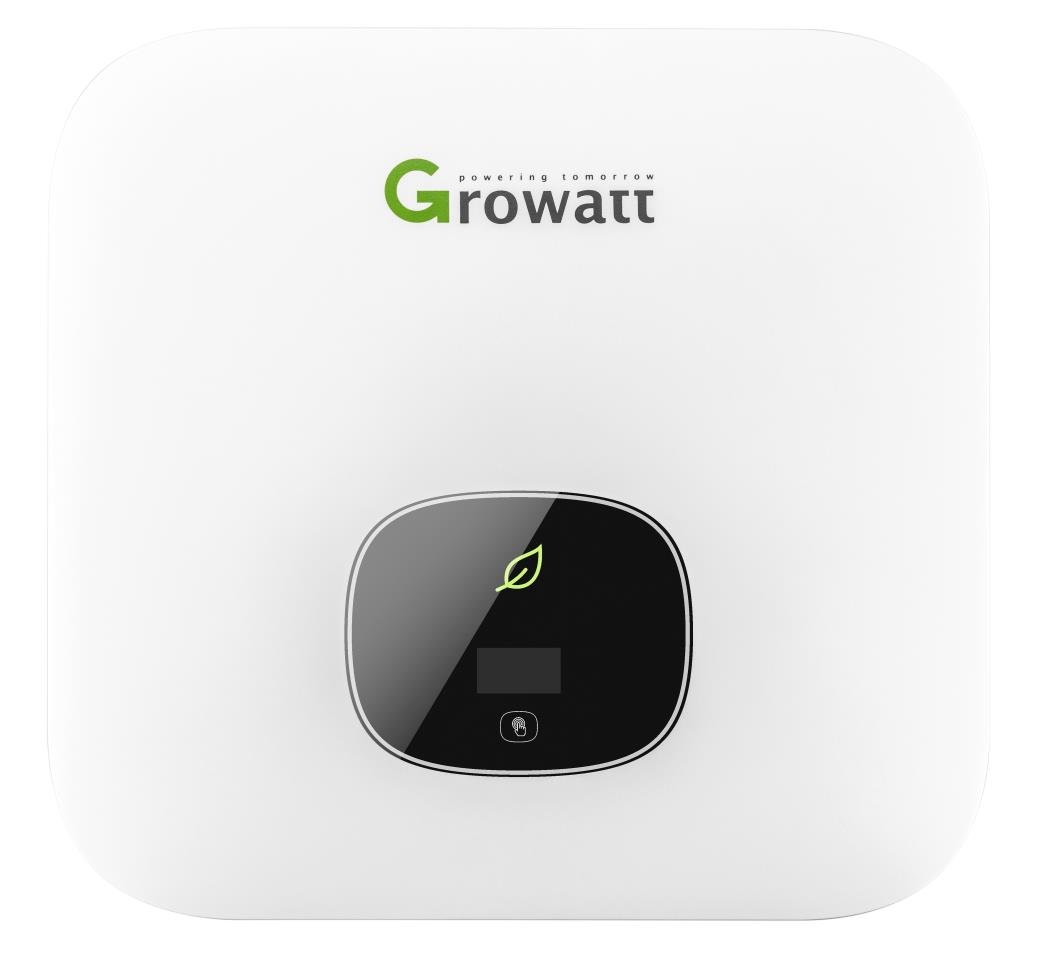

Growatt MIC 4200 TL-X Grid-Tie Single Phase Solar Inverter
Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed generation solar energy since 2018 and ranks among the global top 10 PV inverter suppliers.
The World’s Manufacturer provides of residential, commercial, and utility photovoltaic inverters, energy storage, microgrid systems, and smart energy management solutions.
MIN-XH series is a battery-ready inverter with a lower upfront cost. which offers the customers to extend the battery system in near future without any additional equipment or retrofit cost.
Growatt inverters series MIN-X are the most up-to-day smart inverter solution for rooftop solar systems. It`s of compact design and outstanding efficiency of up to 98.4%.
Growatt MIN 4200 TL-XH Battery Ready Single Phase Inverter 4200kW
- Dual MPP trackers
- Type II SPD on the DC side
- Battery ready interface extends to the storage system
- Compatybile with Growatt XH Battery System
- +IoT make your energy smarter
- 24h self-consumption monitoring
- Touch key and OLED display
- Support export control
- DC/AC ratio up to 1.4
Technical Data
Model | MIN 2500TL-XH | MIN 3000TL-XH | MIN 3600TL-XH | MIN 4200TL-XH | MIN 4600TL-XH | MIN 5000TL-XH | MIN 6000TL-XH |
Max. recommended PV power (for module STC) | 5000W | 6000W | 7200W | 8400W | 9200W | 10000W | 10000W |
Max. DC voltage | 500V | 500V | 550V | 550V | 550V | 550V | 550V |
Start Voltage | 100V |
Nominal voltage | 360V |
No. of MPP trackers | 2 |
Compatible battery | ARK XH Battery System (5.12kWh~17.9kWh) |
Operating voltage range | 360-500V | 360-500V | 360-550V | 360-550V | 360-550V | 360-550V | 360-550V |
Max. operating current | 17A |
Max. charge power | 6000W |
Max. discharge power | 2500W |3000W | 3600W | 4200W | 4600W | 5000W | 6000W |
Max. AC apparent power | 2500VA | 3000VA | 3600VA | 4200VA | 4600VA | 5000VA | 6000VA |
Max. output current | 11.3A | 13.6A | 16A | 19A | 20.9A | 22.7A | 27.2A |
AC grid connection type | Single phase |
Nominal AC voltage | AC grid frequency | 230V | 50/60Hz |
Max. efficiency | 98.2% | 98.2% | 98.2% | 98.4% | 98.4% | 98.4% | 98.4% |
DC/AC surge protection | Type II/Type III |
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN | Yes/Yes/Optional/Optional/Optional /Optional |
Dimensions/ Weight | 375x350x160mm | 10.8kg |
