Fronius Symo 20.0-3-M 20KW Inverter

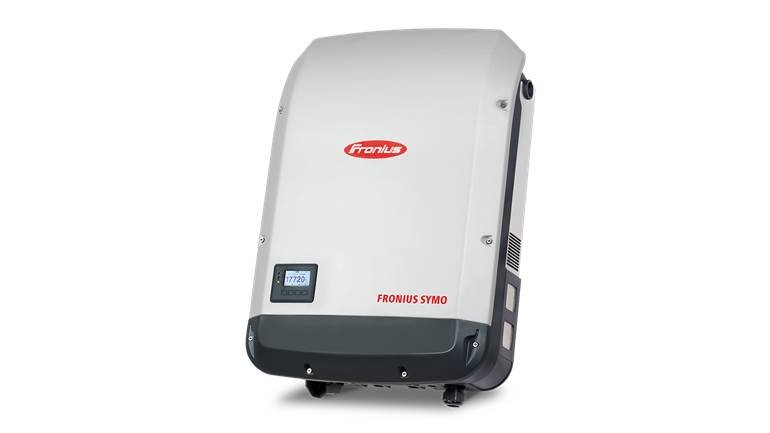

Fronius Symo 20.0-3-M 20KW Inverter With power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for every system size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or different roof orientations. A WLAN or Ethernet internet connection as standard plus easy integration of third-party components make the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and clear visualization of consumption.
Fronius Symo 20.0-3-M 20KW Inverter PRODUCT DETAILS
TECHNICAL DATA
INPUT DATA
NUMBER OF MPP TRACKERS | 2,0 |
---|---|
MAX. INPUT CURRENT (IDC MAX) | 33,0 / 27,0 A |
MAX. SHORT CIRCUIT CURRENT, MODULE ARRAY | 49,5 / 40,5 A |
DC INPUT VOLTAGE RANGE (UDC MIN – UDC MAX) | 200 – 1000 V |
FEED-IN START VOLTAGE (UDC START) | 200,0 V |
NOMINAL INPUT VOLTAGE (UDC,R) | 600,0 V |
MPP VOLTAGE RANGE (UMPP MIN – UMPP MAX) | 420 – 800 V |
USABLE MPP VOLTAGE RANGE | 200 – 800 V |
NUMBER OF DC CONNECTIONS | 3 + 3 |
MAX. PV GENERATOR POWER (PDC MAX) | 30,0 kWpeak |
OUTPUT DATA
AC NOMINAL OUTPUT (PAC,R) | 20,0 kW |
---|---|
MAX. OUTPUT POWER (PAC MAX) | 20,0 kVA |
AC OUTPUT CURRENT (IAC NOM) | 28,9 A |
GRID CONNECTION (UAC,R) | 3~ NPE 400/230, 3~ NPE 380/220 V |
AC VOLTAGE RANGE (UMIN – UMAX) | 150 – 280 V |
FREQUENCY (FR) | 50 / 60 Hz |
FREQUENCY RANGE (FMIN – FMAX) | 45 – 65 Hz |
TOTAL HARMONIC DISTORTION | 1,3 % |
POWER FACTOR (COS ΦAC,R) | 0 – 1 ind./cap. |
GENERAL DATA
HEIGHT | 725,0 mm |
---|---|
WIDTH | 510,0 mm |
DEPTH | 225,0 mm |
WEIGHT | 43,4 kg |
DEGREE OF PROTECTION | IP 66 |
PROTECTION CLASS | 1,0 |
OVERVOLTAGE CATEGORY (DC / AC) 1) | 2 / 3 |
NIGHT-TIME CONSUMPTION | < 1 W |
INVERTER DESIGN | Transformerless |
COOLING | Regulated air cooling |
INSTALLATION | Indoors and outdoors |
AMBIENT TEMPERATURE RANGE | -40°C – +60°C |
PERMITTED HUMIDITY | 0 – 100 % |
MAX. ALTITUDE 2) | 2.000 m / 3.400 m |
DC CONNECTION TECHNOLOGY | 6x DC+ and 6x DC- screw terminals 2.5 – 16 mm² |
AC CONNECTION TECHNOLOGY | 5-pin AC screw terminals 2.5 – 16 mm² |
CERTIFICATES AND COMPLIANCE WITH STANDARDS | ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100,<br /> AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21, NRS 097 |
EFFICIENCY
MAX. EFFICIENCY (PV – GRID) | 98,1 % |
---|---|
EUROPEAN EFFICIENCY (ΗEU) | 97,9 % |
Η AT 5% PAC,R 3) | 91,9 / 95,2 / 93,0 % |
Η AT 10% PAC,R 3) | 94,8 / 96,9 / 95,8 % |
Η AT 20% PAC,R 3) | 96,3 / 97,8 / 97,1 % |
Η AT 25% PAC,R 3) | 96,7 / 97,9 / 97,4 % |
Η AT 30% PAC,R 3) | 96,8 / 98,0 / 97,6 % |
Η AT 50% PAC,R 3) | 97,0 / 98,1 / 97,8 % |
Η AT 75% PAC,R 3) | 97,0 / 98,1 / 97,7 % |
Η AT 100% PAC,R 3) | 96,8 / 98,0 / 97,6 % |
MPP ADAPTATION EFFICIENCY | > 99,9 % |
PROTECTION DEVICES
DC INSULATION MEASUREMENT | Yes |
---|---|
OVERLOAD BEHAVIOUR | Operating point shift, power limitation |
DC DISCONNECTOR | Yes |
REVERSE POLARITY PROTECTION | Yes |
INTERFACES
WLAN / ETHERNET LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
---|---|
6 INPUTS AND 4 DIGITAL INPUTS/OUTPUTS | Interface to ripple control receiver |
USB (TYPE A SOCKET) 4) | Data logging, inverter update via USB flash drive |
2X RS422 (RJ45 SOCKET) 4) | Fronius Solar Net |
SIGNALLING OUTPUT 4) | Energy management (floating relay output) |
DATALOGGER AND WEB SERVER | Integrated |
EXTERNAL INPUT 4) | S0 meter connection / Evaluation of overvoltage protection |
RS485 | Modbus RTU SunSpec or meter connection |
