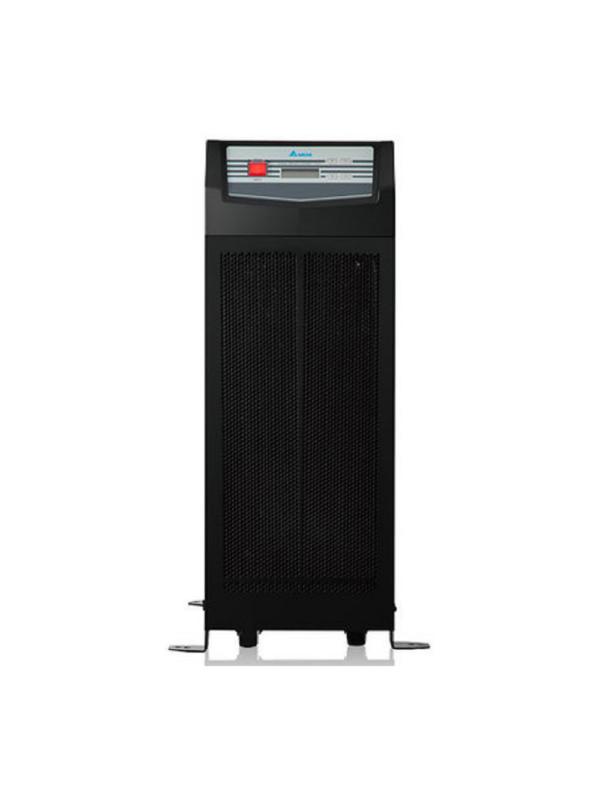

EH 10kVA, 3 phase in 1 phase out Delta UPS(No Battery)

Technical Specifications

Model

EH-10K

Power Rating
EH-10k: 10kVA / 8kW

Input
Nominal Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac
Voltage Range: 208~304 Vac (50%~100% load) / 305~477 Vac (100% load)
Power Factor: > 0.95 (full load)
Frequency: 50 / 60 Hz

Output
Voltage: 220/230/240 Vac
Voltage Harmonic Distortion: < 3% (linear load)
Voltage Regulation: ± 2 %
Frequency: 50/60 Hz ± 0.1Hz

Overload Capacity
≤105 %: continuous
≤106%~110%: 10 minutes
≤111%~125%: 5 minutes
≤126%~150%: 30 seconds

Battery
Battery Voltage: 240 Vdc

Charge Current
Built-in: 4A
Additional charger board (optional): 4A

Charge Voltage
Float charge 272 ± 2 Vdc
Boost charge 280 Vdc

Communication Interfaces
SMART Slot x 1, MINI Slot x 1, Parallel Port x 2, RS232 Port x 1, REPO Port x 1m Charger Detection Port x 1

Conformance
Safety & EMC: CE, IEC62040-1, IEC62040-2

Other Features
Emergency Power Off: Local and remote
Maintenance Bypass Switch: Built-in

Efficiency
Online Mode: 91%
ECO Mode: 96%

Environment
Operating Temperature: 0 ~ 40ºC
Relative Humidity: 5% ~ 95 % (non-condensing)
Audible Noise
EH-10k: < 55 dBA

Physical
Dimensions (W x D x H)
EH-10k: 200 x 490 x 490 mm

Weight
EH-10k: 26 Kg
