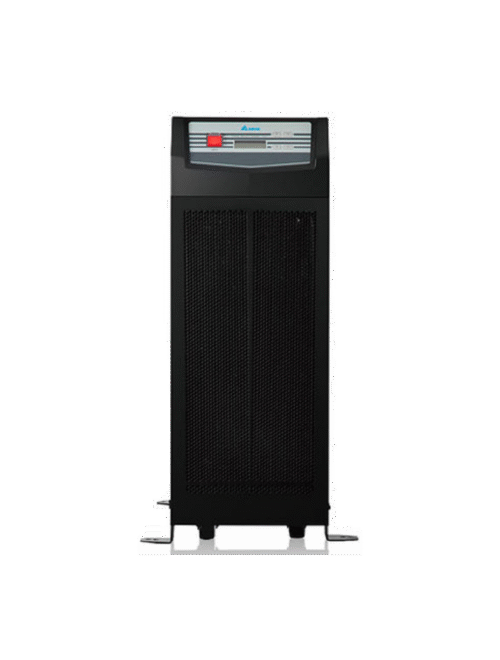

Delta EH 15KVA 240V Online UPS 3 Phase In 1 Phase Out (No Battery)

Technical Specifications

Model

EH-15K

Power Rating

12 kW

Input

Nominal Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac

Voltage Range: 208~304 Vac (50~100% load)

305~477 Vac: (100% load)

Power Factor :> 0.95 (full load)

Frequency: 50/60 Hz

Output

Voltage: 220/230/240 Vac

Voltage Harmonic Distortion: < 3% (linear load)

Voltage Regulation: ± 2%

Frequency: 50/60 Hz ± 0.1 Hz

Overload Capacity:

≤ 105%: continuous

≤ 106~110%: 10 minutes

≤ 111~125%: 5 minutes

≤ 126~150%: 30 seconds

Battery

Battery Voltage: 240 Vdc

Charge Current: Built-in: 4 A

Additional charger board (optional): 4 A

Charge Voltage

Float charge 272 ± 2 Vdc

Boost charge 280 Vdc

Communication Interfaces

SMART Slot x 1, MINI Slot x 1, Parallel Port x 2, RS232 Port x 1,

REPO Port x 1, Charger Detection Port x 1

Conformance

Safety & EMC

CE, IEC62040-1, IEC62040-2

Other Features

Emergency Power Off

Local and remote

Maintenance Bypass Switch

Built-in

Efficiency

Online Mode: 91%

ECO Mode: 96%

Environment

Operating Temperature: 0~40ºC

Relative Humidity: 5~95% (non-condensing)

Audible Noise

< 60 dBA

Physical Dimensions (W x D x H)

250 x 610 x 650 mm

Weight

45 Kg
