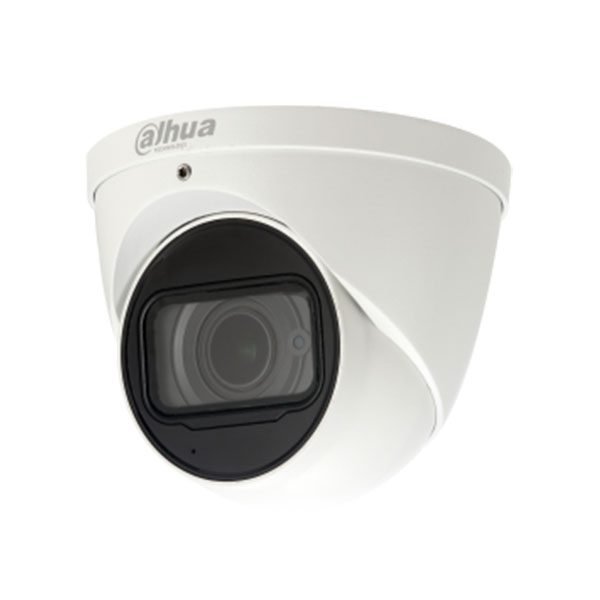

DAHUA Clear 8MP WDR IR Eyeball Network Camera-DH-IPC-

DAHUA  Clear 8MP WDR Eyeball Network Camera-DH-IPC-HDW5831RP-ZE-2712

· 1/2.5” 8Megapixel progressive scan CMOS
· H.265&H.264 dual-stream encoding
· 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
· Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
· 2.7mm ~12mm motorized lens
· Built-in Mic
· Max. IR LEDs Length 50m
· Micro SD card memory, IP67, PoE

System Overview
Eco-savvy products by upgrading H.265 encoding technology, bringing
high efficient video compression. It saves bandwidth and storage,
energy-saving design to enhance the monitoring system. Meanwhile,
the series offers features such as starlight , Smart IR technology ,
intelligent image analysis techniques. It provides excellent image quality
and intelligent and efficient event reminders . This series provides IP67
weatherproof and IK10 vandal-proof protection feature. Give customers
more value.

Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.

4K Technology

4K technology as a revolutionary breakthrough in image, which enhance
the expressive image of essence, allowing users to experience the best
picture quality brought about by the visual feast . For the purposes of 4K
surveillance with four times the 1080P resolution, presented to the user
with more details . Under the same scenario by raising the pixels , reduce
the camera cost.

Dynamic Technology
Embeded with industry leading wide dynamic range (WDR) technology,
vivid picutures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, True WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)
With built-in intelligent video analytics, the camera has the ability to
detect and analyze moving objects for improved video surveillance. The
camera provides optional standard intelliegence at the edge allowing
detection of multiple object behaviors such as abandoned or missing
objects. IVS also supports Tripwire analytics, allowing the camera to
detect when a pre-determined line has been crossed, ideal for business
intelligence, and Facial Detection, for searching or identification of
individuals.

Protection(IP67, wide voltage)
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 4KV lightning
rating provides effective protection for both the camera and its structure
against lightning.IP67 is supported by the camera, which makes it
suitable for both indoor and outdoor environments.

Smart H.265+
Deliver high quality video without straining the network, Smart H.265+
is the optimized implementation of H.265. The Smart H.265+ encoding
technology includes a scene adaptive encoding strategy, dynamic GOP,
dynamic ROI, flexible multi-frame reference structure and intelligent
noise reduction, providing saving of up to 70% of bandwidth and storage
when compared with standard H.265.
