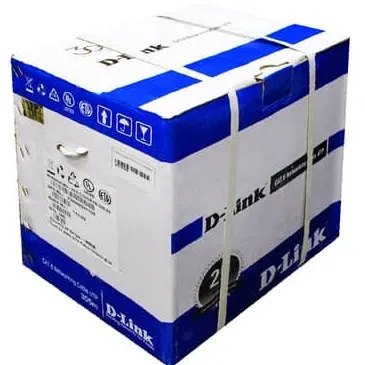

D-Link Cat6e Ethernet Cable – Pure copper  UTP 23 AWG Ethernet Cables Kenya 305 Meters

D-Link  Ethernet Cables provide an easier and cost-effective way to create a Local Area Network that supports  Gigabit Ethernet (1000Base-T) standard. The Ethernet Cables are designed to operate at a bandwidth up to 250 Mhz.



Cat 6 Pure Cable Specifications  and technical details

• Category 6 UTP Solid cable Color: Cool Gray 10C
• Model- Brand : D Link : NCB-C6UGRYR-305
• Full box cable Length type : 305M ( 1000ft)
• Specific Heat-resistant : 75ohm
• Cat 6 dlink cable Conductor : 23 AWG(0.574 / 0.007mm) Bare Copper
• Insulation Material : HD-PE

Technical Details

 Capacitance : 5.6nF/100m nominal
Impedance : 100Ω/15%,1-600MHz
Nominal Velocity of Propagation : 69%
Operating Temperature : -20℃-60℃(-4℉-140℉)
Storage Temperature : -20℃-80℃(-4℉-176℉) “

Certifications

“Certified for UL 444 (for Copper conductor)
UL 758/ Style 2835 (for Copper, CCA, CCAM & CCS conductors)
UL 1581 (Test standard)
TIA/EIA-568B.2 (Test standard).
FCC Part 68.500 or IEC 60603-7-4 (for Modular connector)

Application

Structured Cabling infrastructure, Gigabit and fast

speeds and  “10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN Cabling
155/ 622 Mbps ATM
For Power over Ethernet (POE)

Download Data Sheet Here >>>> D-Link Cat 6E UTP Data Sheet

Manufacturer Website  >>>>  D-Link CAT6E UTP CABLE 305M Roll

The cable is standard and  A cost Effective solution in Kenya for creating a standard   Gigabit 1000Base-T and 1000Base-Tx  Compliant network Computer Networking, Internet Infrastructure and all other structured Cabling Works.  And, other applications like Digital CCTV Cabling, IP Telephony Networking  and Much More

• The Cable is tested  to 250MHz frequency range and designed  and standard packing will
• 305m easy pull out boxes.
• High pair-balance  for  excellent EMC (Electromagnetic Compatibility)
