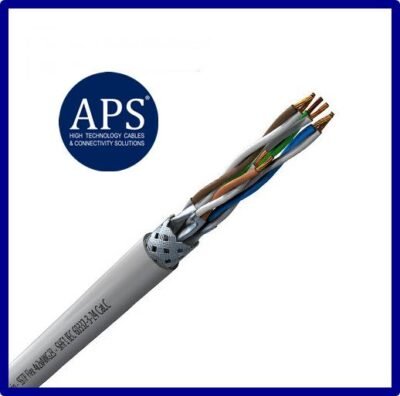

Cat 7 S/FTP 4 pairs AWG23 APS-Finland

The use of Cat 7 data cabling is increasing rapidly on ships and offshore installations. To meet the demands of the rugged offshore shipping environment our UV resistant & Oil resistant DNV- GL & ABS approved Category 7 cables are available from stock.

Store at: -40 to +60 °C
Install at: -40 to +60 °C, Bend minimum: 5 times O.D.
Operate at: -40 to +60 °C, Bend minimum: 10 times O.D.
Pull maximum: 100N

Design

Conductor: solid bare copper AWG23/1
Insulation: Cellular polyolefin  (SFS-PE), nominal Ø 1.38 mm
Pair: No 2 insulated conductors stranded together into a pair
Colour code: 1. White/blue 2.White/orange 3. White/green 4. White/brown (IEC 708-1)
Screen 1: Aluminium/polyester or Aluminium/polyester/aluminium tape over each single pair
Screen 2: overall Tinned Copper Wire Braid
Outer jacket: Grey Fire Retardant and UV Resistant SHF2 material, LSZH
Marking : APS Finland – ww/yy – S/FTP 4x2xAWG23/1 Cat.7 LSZH SHF2 – IEC60332-3-22 Cat A – lot + m

Environmental properties and Fire Performances

Degree of acidity of gases: IEC 60754-1, IEC 60754-2 (pH value ≥ 4,3 and Conductivity ≤10μS/mm)
Halogen acid gas: IEC 60754-1, IEC 60754-2 (Halogen acid gas emission ≤ 0.5%)
Smoke Emission: IEC 61034-2, EN 50268-2 (Transmittance) ≥ 60%)
Toxicity of evolved gas: EN50305 9.2
Flame retardant : IEC 60332-1-2
Fire retardant : IEC 60332-3-22 Cat.A
Ozone resistant: IEC60811-2-1, DIN VDE 0472 part 805 B
LSZH SHF2 : IEC 60092-360
Oil resistant: IEC60811
Water absorption: IEC60811-1-3
UV resistant: IEC60811-2-1, ASTM-D-2565-92A
Cold bend & impact : CSA C22.2, UL44
