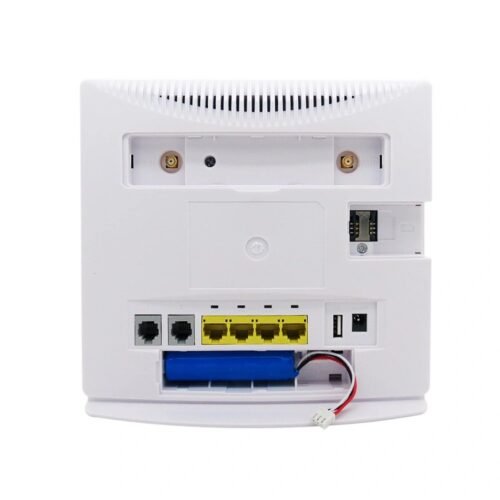

4G Lte CPE GSM WiFi Router 300Mbps LAN Port
2g/3G/4G Lte CPE Broadband Unlock FDD Tdd WCDMA GSM Mobile Hotspot Wireless WiFi Router with Cat4 300Mbps LAN Port
2g/3G/4G Lte CPE Broadband Unlock FDD Tdd WCDMA GSM Mobile Hotspot Wireless WiFi Router with Cat4 300Mbps LAN Port
Main Function of the router
Wireless Wi-Fi Router that supports up to 32 Users
GSM GATEWAY for Use with PBX
• Support 4G network connection
• Support external antennas
• WLAN function, easy to expand wireless network
• Prevent loiter network, multi wireless safety ensuring
• IP broadband band control, ensure the speed
• Support network traffic statistics
• Functioning as a Dynamic Host Configuration Protocol (DHCP) server and supporting
• Network Address Translation (NAT)
• Internet Protocol version 6 (IPv6)/Internet Protocol version 4 (IPv4) dual stack
• Security functions
• Wi-Fi protected setup (WPS)
• Support TR069
• Support L2TP VPN
• Supports NAT and Network Address and Port Translation (NAPT)
• Support Read, write, send SMS
Parameters:
| SHFi4G8X8 | Technical specifications |
| 4G Platform | Qualcomm MDM9225 |
| Qualcomm MDM9225 | LTE-FDD/ TDD-LTE/WCDMA |
| LTE | Option 1: FDD:B1/B2/B3 or B4/B5/B7/B8/B28 TDD:B38/B39/B40/B41(can be customized) Option 2: FDD:B1/B2/B3 or B4/B5/B7/B8/B17/B20 TDD:B38/40(can be customized) Please confrim your frequencies, frequencies can be customized |
| 3G/2G | WCDMA:B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Rate level | CAT4 DL:150Mbps / UL:50Mbps |
| Transmitting power | 23dBm |
| Antenna | External antenna and internal antenna,Gain>3db |
| WiFi | |
| WiFi Band | 2.4GHz,802.11b/g/n |
| WiFi Rate | Highest rate 300Mbps |
| WiFi Standard | IEEE 802.11b/g/n |
| WiFi RF Characteristics | Highest transmit power 22dBm,sensitivity is better than -77dBm |
| Number of linking users | Maximum 32 user connected |
| CSFB | support |
| Network Features | |
| Networking protocols | PPTP,L2TP,PPPoE,DHCP,Client/Server,NAPT,NTP |
| High-speed router | Built-in DHCP Server,DNS Clinet,support NAT |
| Dialing function | Manual dialing,autodialing,PPPOE dialing |
| SIM card Features | Support 1.8V/3V powered SIM/USIM card,Support encryption card,Support |
| Management | |
| Web smart | support |
| Centralized network management | support |
| TR069 | support |
| Remote Upgrade | support |
| Security | |
| Security Features | Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address binding |
| Speed control | Support UL and DL speed limit , port speed limit |
| Hardware | |
| LAN/WAN | RJ-45×4 (10/100/1000Mbps ethernet port) |
| FXS | RJ-11×2 by paralleling(optional) |
| PSU | DC2.0 15V @ 500mA |
| Power | 3.0W |
| Light | power,network,signal,LAN |
| Physical Characteristics | |
| Working temperature | -20~50ºC |
| Stock temperature | -40~85ºC |
| Huminity | ≤95% |
