Description
4 Cores OM3 50/125 -GYXTW
| GYXTW 4 Cores OM3 50/125 No.7120416 |
|
| Technical Parameters | |
| Cable Code | GYXTW |
| Fiber Count | 4 |
| Cable Diameter | 8(mm) |
| Cable Weight | 60(kg/km) |
| Tensile Strength Long/Short term | 600/1500(N) |
| Crush Resistance Long/Short term | 300/1000(N/100mm) |
| Bending Radius Static/Dynamic | 10D/20D(mm) |
| Storage/Operating Temperature:-40℃to+70℃ | |

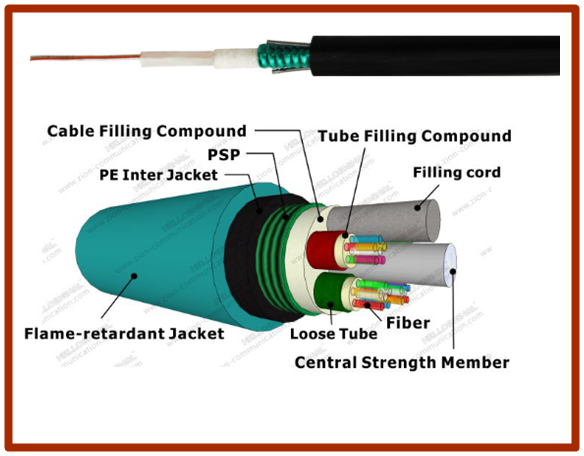

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tube are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally.
Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two side of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene(PE) sheath.
- ▶ Good mechanical and temperature performance.
- ▶ High strength loose tube that is hydrolysis resistant.
- ▶ Special tube filling compound ensure a critical protection of fiber.
- ▶ Crush resistance and flexibility.
- ▶ PSP enhancing moisture-proof.
- ▶ Two parallel steel wires ensure tensile strength
- ▶ Small diameter, light weight and friendly installation
- ▶ Long delivery length
- ▶ Application:duct/aerial
