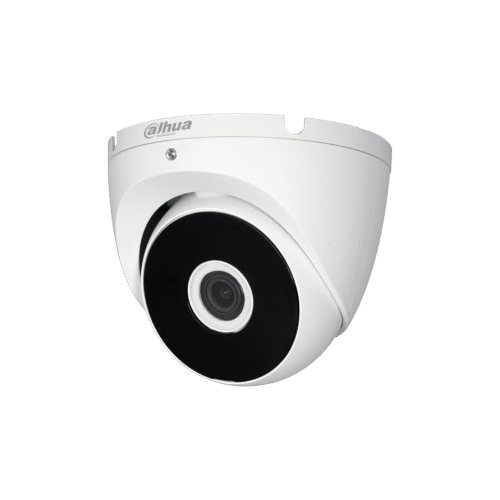

2MP Dahua HDCVI IR Eyeball Camera

DH-HAC-T2A21P-0360B

2MP HDCVI IR Eyeball Camera Series Cooper 20m

• · Max. 30fps@1080P
• · HD and SD output switchable
• · 3.6mm fixed lens
• · Max. IR length 20m, Smart IR
• · IP67, DC12V

Standard:	HD-CVI, HD-TVI, AHD, PAL
Sensor:	1/2.7 ” Progressive Scan CMOS
Matrix size:	2.1 Mpx
Resolution:	1920 x 1080  – 1080p , 1280 x 720  – 720p , 960 x 576  – 960H, PAL
Range of IR illumination:	20 m
IR illuminator power adjustment:	Automatic
Lens:	2.8 mm
View angle:	103 ° (manufacturer data) 100 ° (the result of our test)
S/N ratio:	> 65 dB
Video output:	HD-CVI / HD-TVI / AHD / PAL, 1 Vpp / 75 Ω
Audio:
Main features:	D-WDR – Wide Dynamic Range 2D-DNR – Digital Noise Reduction BLC/HLC – Back Light / High Light Compensation AGC – Automatic Gain Control ICR – Movable InfraRed filter Mirror – Mirror image Auto White Balance Sharpness – sharper image outlines
OSD menu:	OSD menu available via DAHUA recorder
Power supply:	12 V DC / 220 mA
Power consumption:	≤ 2.7 W
Housing:	Dome, Aluminum
Color:	White
Vandal-proof:
“Index of Protection”:	IP67
Operation temp:	-40 °C … 60 °C
Weight:	0.27 kg
Dimensions:	Ø 94  x 78 mm
Supported languages:	Polish, English, French, Spanish, German, Portuguese, Russian, Italian
Manufacturer / Brand:	DAHUA
