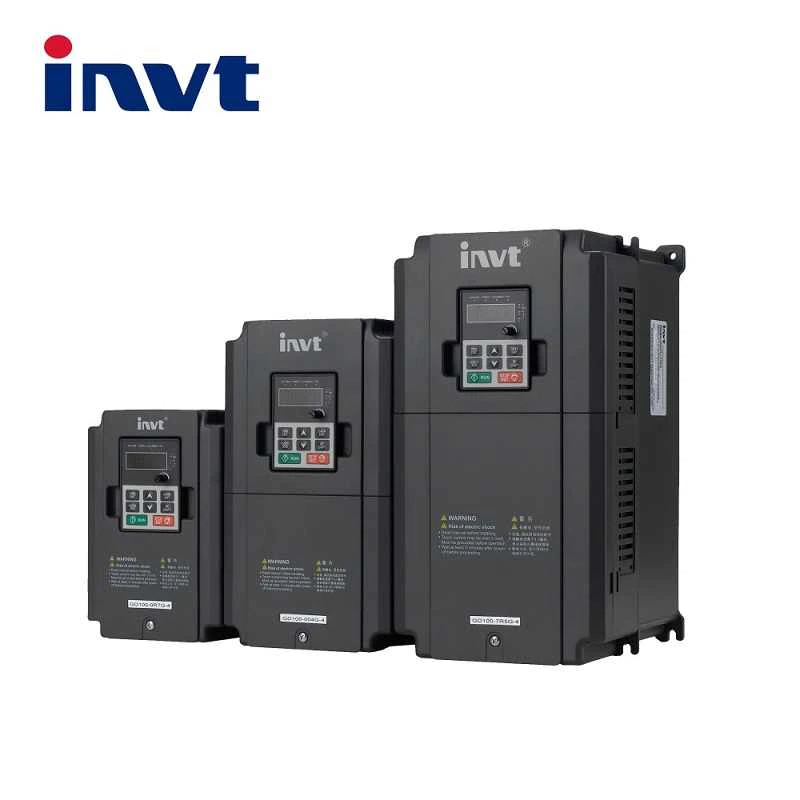

Brief introduction of Goodrive 10 inverters
Goodrive 10 Series min-economy inverters are designed for the small power OEM application marker. With the function of vectorization V/F control and PID function, multi-step speed, DC braking and Modbus communication, and so on, the inverter has more advantages but occupied less installation space.
Features
1. V/F control
2. Natural cooling (for the applications with cotton and dust)
3. Mini structure, less installation space
Rated Specifications
| Model | Output power (kW) | Input current (A) | Output Current (A) | |
| Single-phase 230V | GD10-0R2G-S2-B | 0.2 | 4.9 | 1.6 |
| GD10-0R4G-S2-B | 0.4 | 6.5 | 2.5 | |
| GD10-0R7G-S2-B | 0.75 | 9.3 | 4.2 | |
| GD10-1R5G-S2-B | 1.5 | 15.7 | 7.5 | |
| GD10-2R2G-S2-B | 2.2 | 24 | 11 | |
| Three-phase 230V | GD10-0R2G-2-B | 0.2 | 1.9 | 1.6 |
| GD10-0R4G-2-B | 0.4 | 2.7 | 2.5 | |
| GD10-0R7G-2-B | 0.75 | 4.9 | 4.2 | |
| GD10-1R5G-2-B | 1.5 | 9 | 7.5
|
|
| GD10-2R2G-2-B | 2.2 | 15 | 11 | |
| Three-phase 400V | GD10-0R7G-4-B | 0.75 | 3.2 | 2.5 |
| GD10-1R5G-4-B | 1.5 | 4.3 | 4.2 | |
| GD10-2R2G-4-B | 2.2 | 7.1 | 5.5 | |
Technical Specifications
| Function | Specifications |
| Input voltage (V) | 230V: input voltage range: single phase or three phases 230V 10% |
| 400V; input voltage range: three-phase 400V 15% | |
| Input frequency (Hz) | 50Hz or 60Hz Allowed range: 47~63Hz |
| Output voltage (V) | Equal to input voltage with the deviation of less than 5% |
| Output frequency(Hz) | 50Hz/60Hz, Fluctuation range: 5% |
| Control mode | V/f control |
| Maximum output frequency | 200Hz |
| Adjustable-speed ratio | 0.111111111 |
| Overload capability | 150% of rated current: 1 minute |
| Analog input resolution | <=20mV |
| Digital input resolution | <=2ms |
| Analog input/output | Input 1.0~10V or 0-20mA, output; 1.0~10V or 0~20mA |
| Digital input/output | 5 channels digital input, 1 Y terminal output, and 1 programmable relay output |
| Communication | MODBUS |
| Mountable mode | Wall mounting |
| The temperature of the running environment | -10~500C, derate above 400C |
| Cooling | Single/three-phase 230V 0.2-0.75kW natural cooling |
| Single/three-phase 230V 1.5-2.2kw, three-phase 400V 0.75-2.2kw | |
| Fault protection | Over-current, overvoltage, under voltage, over temperature, overload, and other protections |
| Braking unit |
Only standard for GD10-B |
For more Specifications 11kw invt three phase inverter
Also check:
Brand
Invt
Related products

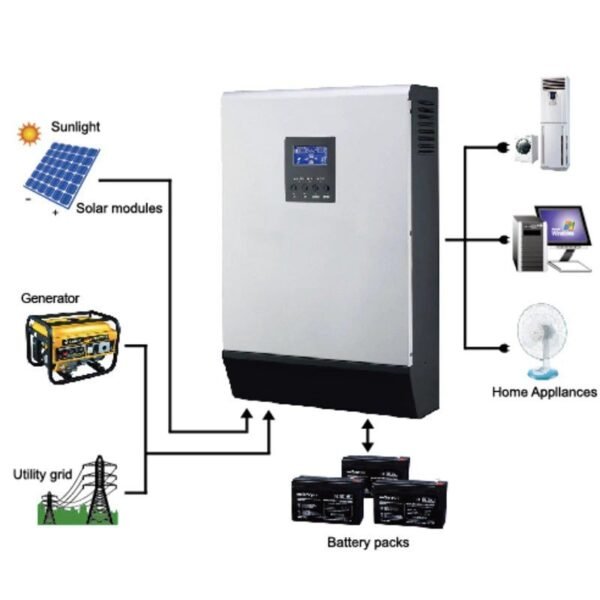

Hybrid Solar Inverters
